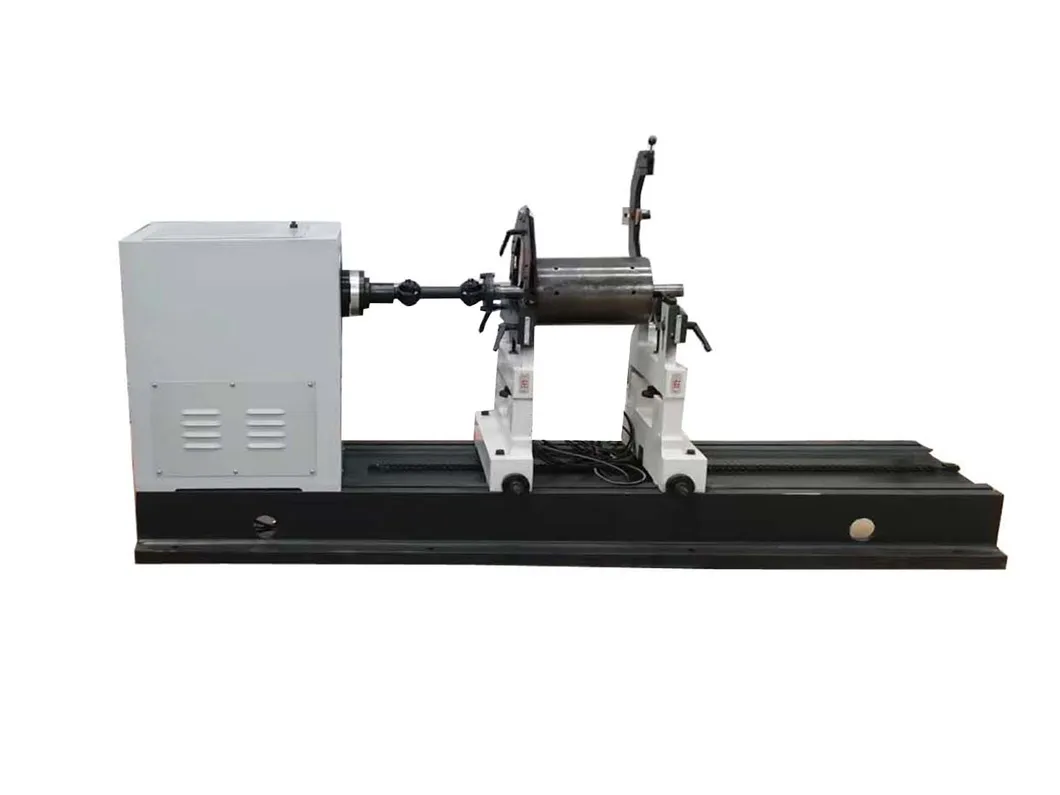

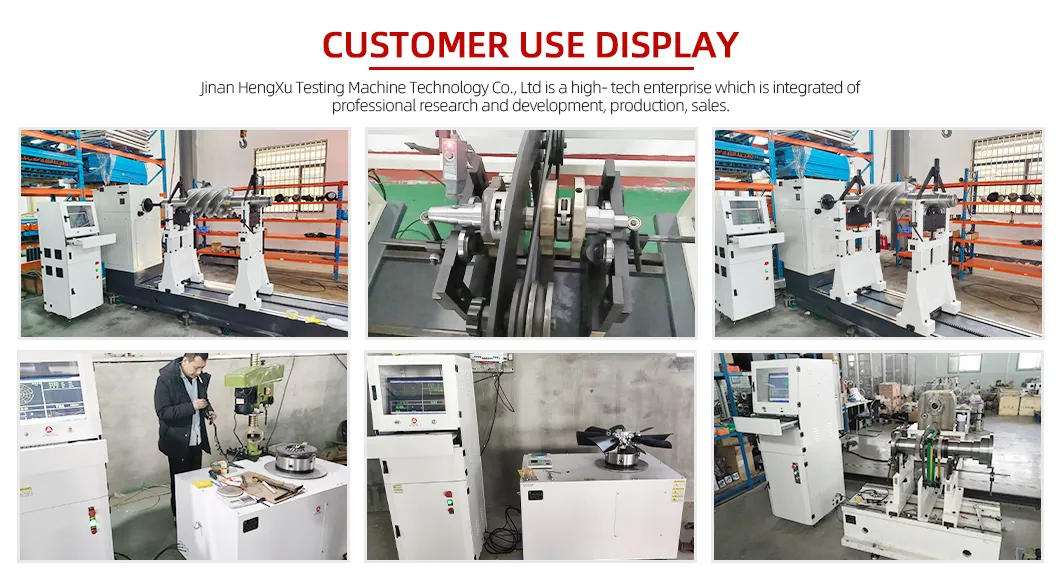

Yyq-500A Drive Shaft Horizontal Dynamic Balancing Machine
Product Description
This extraordinary Dynamic Balancing Machine by HENGXU is expertly crafted for an expansive array of industries, including electric motors, blowers, diesel engines, agricultural machinery, and textile machinery. Its remarkable versatility empowers it to execute balancing measurements across single, double, and even multiple correction surfaces. Perfectly suited for shafts, disks, and rotors with extended center of gravity, this machine offers a suite of impressive features. Enjoy high efficiency, pinpoint accuracy, an intuitive display, unmatched quality, and effortless maintenance. These attributes make it an essential asset for industries that demand nothing short of excellence.
Main technical parameters
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Distance between two supports (mm) | Shaft diameter range (mm) | Diameter range of belt drive (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) |
| YYQ-3 | 0.1-3 | Ø350 | 30-450 | Ø3-22 | ≤Ø150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-5
|
0.1-5 | Ø400 | 50-600 | Ø3-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-10 | 1-10 | Ø500 | 30-600 | Ø5-60 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-16
|
0.3-16 | Ø500 | 60-600 | Ø5-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-50
|
1-50 | Ø900 | 80-800 | Ø8-70 | Ø18-250 | 300-1500 | ≤0.5 | ≥90 | 0.75 |
| YYQ-100
|
2-100 | Ø900 | 80-1000 | Ø10-140 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-160
|
2-160 | Ø950 | 100-1400 | Ø10-180 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-300
|
5-300 | Ø1200 | 150-1500 | Ø20-180 | Ø30-450 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-500
|
10-500 | Ø1500 | 150-1500 | Ø20-240 | Ø40-500 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-1000
|
10-1000 | Ø1500 | 150-2600 | Ø20-240 | Ø40-650 | 180-1450 | ≤0.5 | ≥90 | 5.5 |
| YYQ-1600
|
30-1600 | Ø1800 | 150-2600 | Ø20-240 | Ø40-800 | 180-1450 | ≤0.5 | ≥90 | 7.5 |
| YYQ-3000 | 100-3000 | Ø2000 | 150-2600 | Ø15-300 | Ø40-900 | 180-1450 | ≤0.5 | ≥90 | 11 |
1. Measurement System
Outfitted with a high-performance industrial control computer and a 19-inch LCD display, the machine operates on the Windows platform, ensuring a seamless and intuitive user experience.
Vertical balancing machines are augmented with our proprietary universal balancing measurement system, incorporating all critical functions of mainstream balancing software in China. The system features a user-friendly Chinese menu structure with text-prompted operational steps, while large vertical machines include software with angle tracking capabilities.
Unleashing robust performance, the measurement system swiftly calibrates any workpiece with a broad speed range starting at 80 rpm. It ensures expedient measurements with a stable amplitude and phase, optimizes weight removal, and provides high sensitivity for impeccably precise results.
The software features an advanced allowable unbalance calculator. By simply entering the vibration accuracy level, mass, working speed, and workpiece radius, operators can effortlessly determine the allowable residual unbalance in grams, streamlining the entire process.
Our software is fully independently developed, offering the flexibility to modify or enhance it according to specific customer requirements, ensuring a bespoke solution for every unique need.
2. Mechanical Part and Control
Constructed with a robust casting base, vertical bracket, spindle seat, and support seat, the equipment provides exceptional rigidity and stability. It boasts an overload capacity of 20% beyond the standard model, underscoring its durability and resilience.
The spindle, crafted from premium 45# carbon structural steel, undergoes meticulous forging, quenching, and fine grinding, ensuring axial and radial runout precision within 0.01mm. Its thickened design adeptly measures workpiece unbalances exceeding 30,000g*cm with finesse.
Employing a multi-V belt for power transmission ensures smooth, reliable operations with minimal impact on balance measurements, significantly enhancing the machine's overall performance.
A synchronous rotating dial is integrated into the spindle, simplifying the identification of the unbalance angle, making adjustments swift and precise.
The spindle's innovative hollow structure, coupled with a rotating cylinder connection, facilitates rapid workpiece clamping using a pull rod and pneumatic chuck or tooling, dramatically optimizing efficiency.
This high-quality equipment, featuring a sophisticated variable frequency speed regulation system, benefits from a gentle motor soft start and stop, minimizing impact, prolonging equipment lifespan, and allowing for continuous operation with straightforward maintenance.

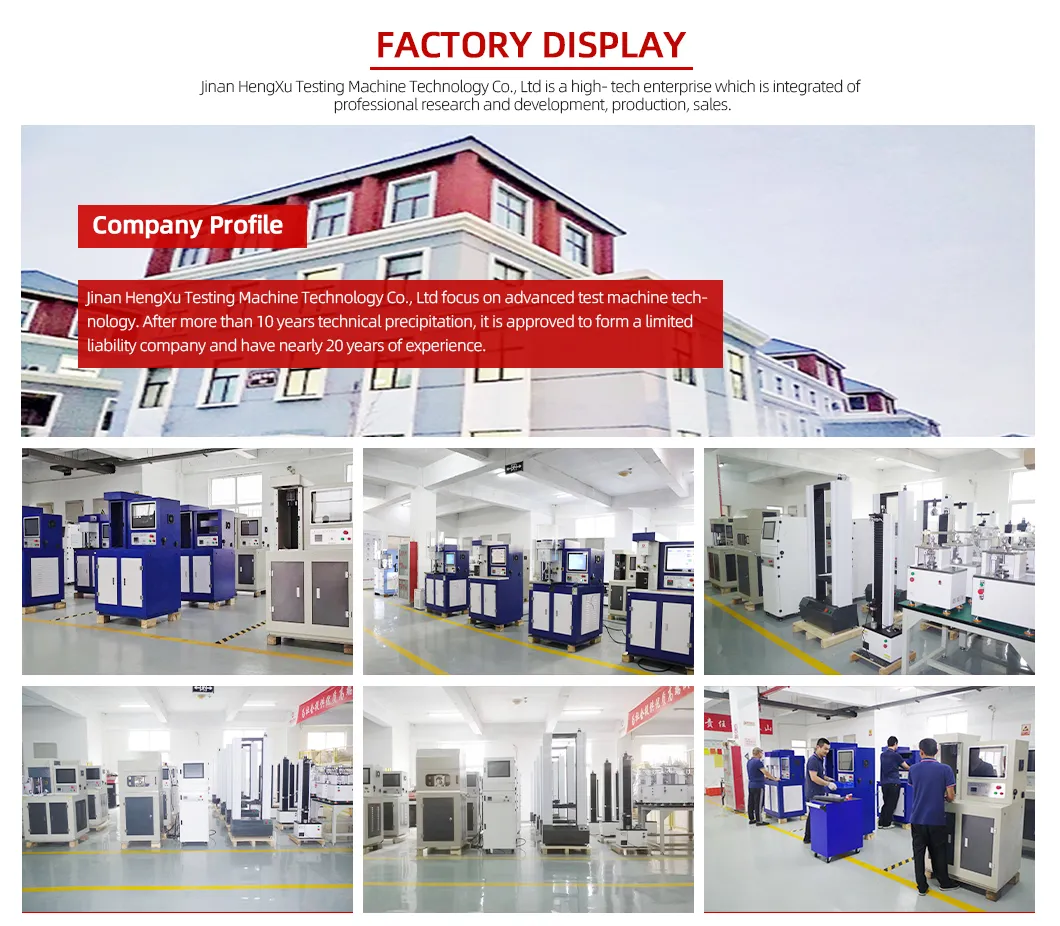

Founded in 2007, Jinan HengXu Testing Machine Technology Co., Ltd. has rapidly climbed to the pinnacle of China's dynamic testing industry. As an esteemed high-tech enterprise, we pride ourselves on the innovative research, cutting-edge development, and meticulous manufacturing of state-of-the-art testing machines. Our expertise is prominently highlighted in the specialized domains of friction wear testing and mechanical testing for pioneering advanced materials. HengXu has adeptly crafted a distinguished reputation, garnering widespread acclaim and unwavering trust from a multitude of valued clients. Our relentless commitment to quality and excellence drove us to achieve an extraordinary milestone, with sales surpassing 100 million RMB last year. Embark with us on a thrilling journey of technological innovation and steadfast reliability, where our advanced testing technologies align seamlessly with unparalleled customer satisfaction.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.

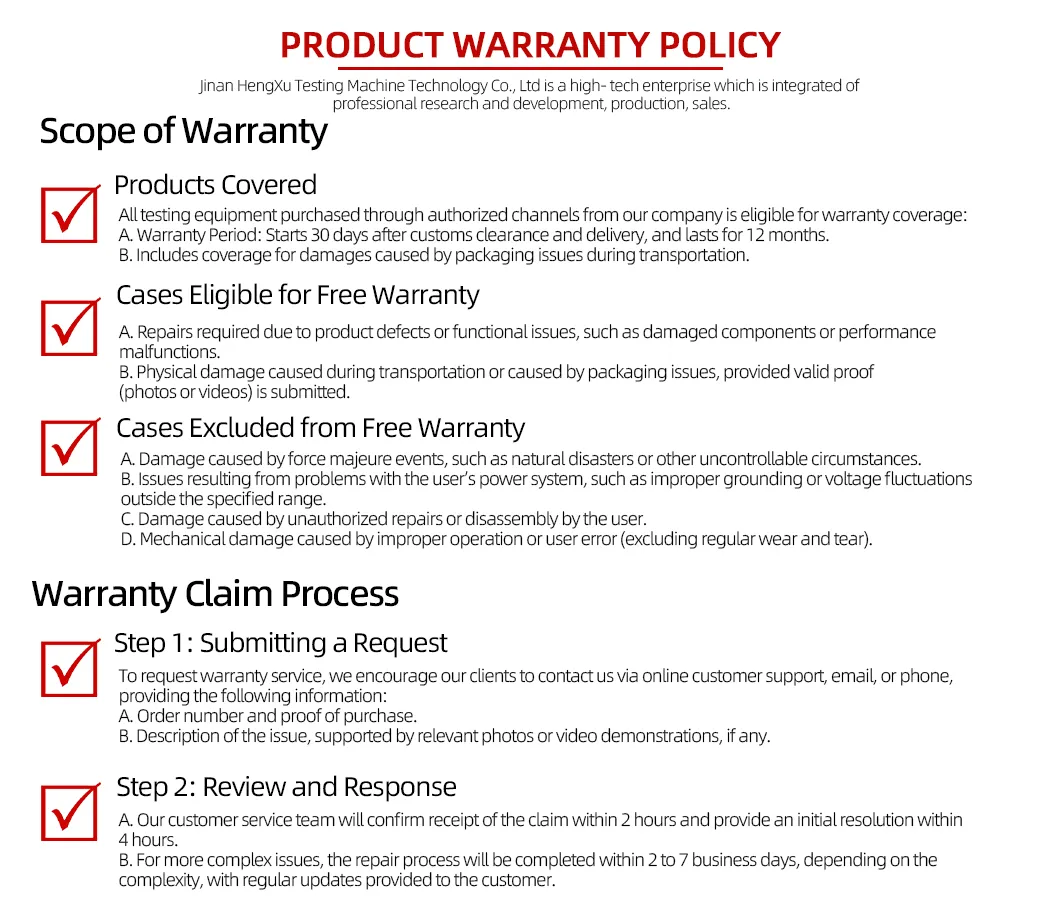

Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!
- Model NO.:
- YYQ-500A
- Max Diameter of Workpiece:
- 1800mm
- Mass Scope of Workpiece:
- 10000kg
- Type:
- Balancing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 1
- Load Way:
- Electronic Load
- Loading Method:
- Dynamic Load
- Display:
- Digital
- Control:
- Computer Control
- Weight:
- >2000Kg
- Power Source:
- AC380V
- Oil Cylinder Position:
- No
- Transport Package:
- Wooden Boxes That Meet Export Requirements
- Specification:
- 630*670*1600, 1100*800*740
- Trademark:
- HENGXU
- Origin:
- China
- HS Code:
- 9031100090
- Production Capacity:
- 1000
- Package Size:
- 200.00cm * 50.00cm * 1000.00cm
- Package Gross Weight:
- 1100.000kg
