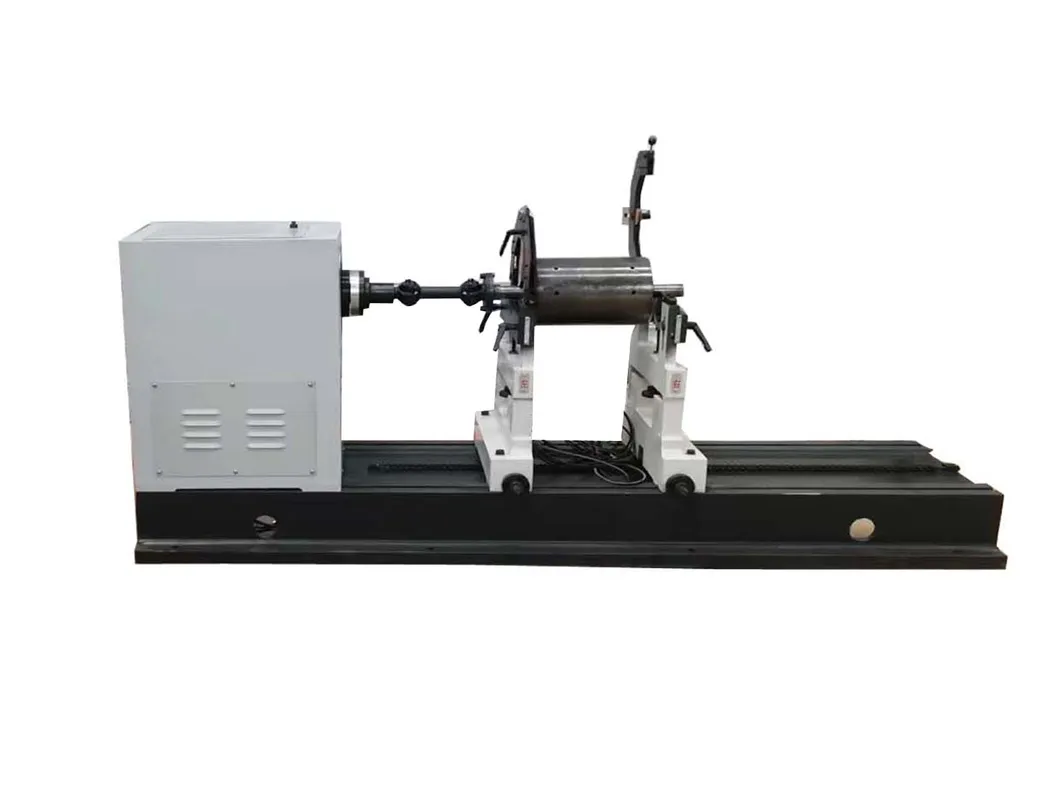

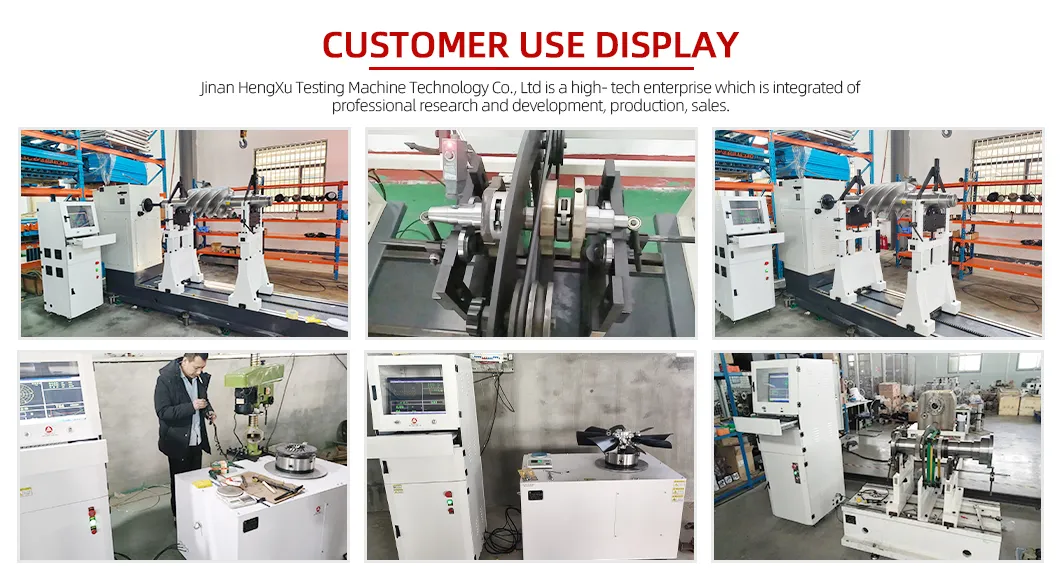

YYQ-5000A Trusted Performance Horizontal Dynamic Balancing Equipment
Product Description
This extraordinary Dynamic Balancing Machine by HENGXU is artfully engineered to cater to a diverse array of industries, including electric motors, blowers, diesel engines, agricultural machinery, and textile machinery. Its remarkable adaptability allows it to meticulously perform balancing measurements across single, double, and multiple correction planes. Ideal for shafts, disks, and rotors with extended centers of gravity, this machine is a paragon of high-efficiency, precision accuracy, intuitive display, unparalleled quality, and ease of maintenance. It stands as an invaluable asset for industries that place a premium on excellence and performance.
Premier Technical Specifications
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Distance between two supports (mm) | Shaft diameter range (mm) | Diameter range of belt drive (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) |
| YYQ-3 | 0.1-3 | Ø350 | 30-450 | Ø3-22 | ≤Ø150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-5
|
0.1-5 | Ø400 | 50-600 | Ø3-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-10 | 1-10 | Ø500 | 30-600 | Ø5-60 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-16
|
0.3-16 | Ø500 | 60-600 | Ø5-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-50
|
1-50 | Ø900 | 80-800 | Ø8-70 | Ø18-250 | 300-1500 | ≤0.5 | ≥90 | 0.75 |
| YYQ-100
|
2-100 | Ø900 | 80-1000 | Ø10-140 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-160
|
2-160 | Ø950 | 100-1400 | Ø10-180 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-300
|
5-300 | Ø1200 | 150-1500 | Ø20-180 | Ø30-450 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-500
|
10-500 | Ø1500 | 150-1500 | Ø20-240 | Ø40-500 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-1000
|
10-1000 | Ø1500 | 150-2600 | Ø20-240 | Ø40-650 | 180-1450 | ≤0.5 | ≥90 | 5.5 |
| YYQ-1600
|
30-1600 | Ø1800 | 150-2600 | Ø20-240 | Ø40-800 | 180-1450 | ≤0.5 | ≥90 | 7.5 |
| YYQ-3000 | 100-3000 | Ø2000 | 150-2600 | Ø15-300 | Ø40-900 | 180-1450 | ≤0.5 | ≥90 | 11 |
1. Advanced Measurement System
Fitted with a high-performance industrial control computer and a 19-inch LCD display, the machine operates seamlessly on the Windows platform, ensuring an effortless user experience.
Vertical balancing machines are upgraded with our proprietary universal balancing measurement system, covering all essential functions found in mainstream balancing software in China. The system is designed with a user-friendly Chinese menu structure and text-prompted operational steps, while extensive vertical machines feature software equipped with angle tracking capabilities.
Harnessing exceptional performance, the measurement system quickly calibrates any workpiece across a broad speed range starting at 80 rpm. It ensures rapid measurements with unwavering stability in amplitude and phase, maximizes weight removal, and provides high sensitivity for flawlessly precise results.
Featuring an advanced allowable unbalance calculator, the software allows operators to determine the permissible residual unbalance in grams effortlessly by inputting the vibration accuracy level, mass, working speed, and workpiece radius, streamlining the process efficiently.
Our entirely independently developed software offers the adaptability to modify or enhance it according to specific customer requirements, providing a tailored solution to meet every unique need.
2. Robust Mechanical Structure and Control
Built with a sturdy casting base, vertical bracket, spindle seat, and support seat, the equipment guarantees exceptional rigidity and stability. It showcases an overload capacity of 20% beyond the standard model, demonstrating its formidable durability.
Crafted from premium 45# carbon structural steel, the spindle undergoes precise forging, quenching, and fine grinding, ensuring axial and radial runout precision within 0.01mm. Its robust design accurately measures workpiece unbalances that exceed 30,000g*cm.
Utilizing a multi-V belt for power transmission ensures smooth, consistent operations with minimal impact on balance measurements, boosting the machine's overall performance.
An integrated synchronous rotating dial within the spindle simplifies the process of identifying the unbalance angle, ensuring quick and accurate adjustments.
The spindle's innovative hollow design, combined with a rotating cylinder connection, facilitates fast workpiece clamping via a pull rod and pneumatic chuck or tooling, optimizing operational efficiency.
Featuring a high-quality variable frequency speed regulation system, this equipment benefits from a gentle motor soft start and stop, reducing impact, prolonging equipment lifespan, and enabling continuous operation with straightforward maintenance.
