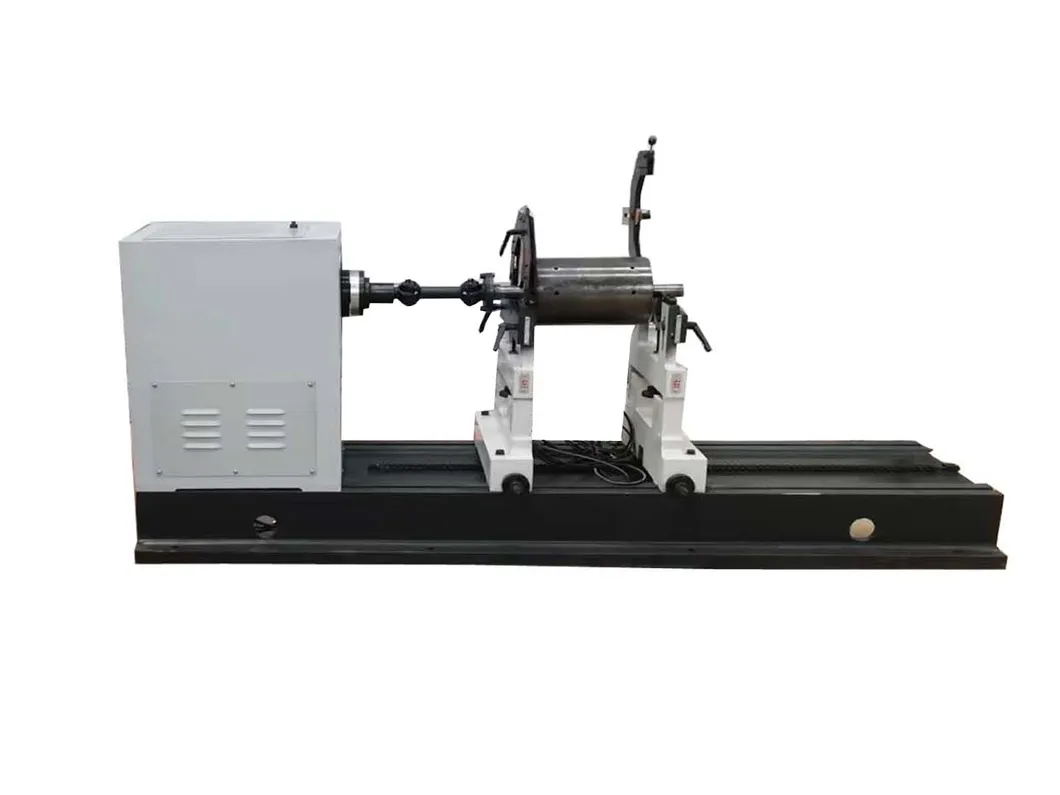

YYQ-16A Advanced Hard-Bearing Dynamic Balancing Machine Motor for Rotor New Energy Motor Rotor
Product Description

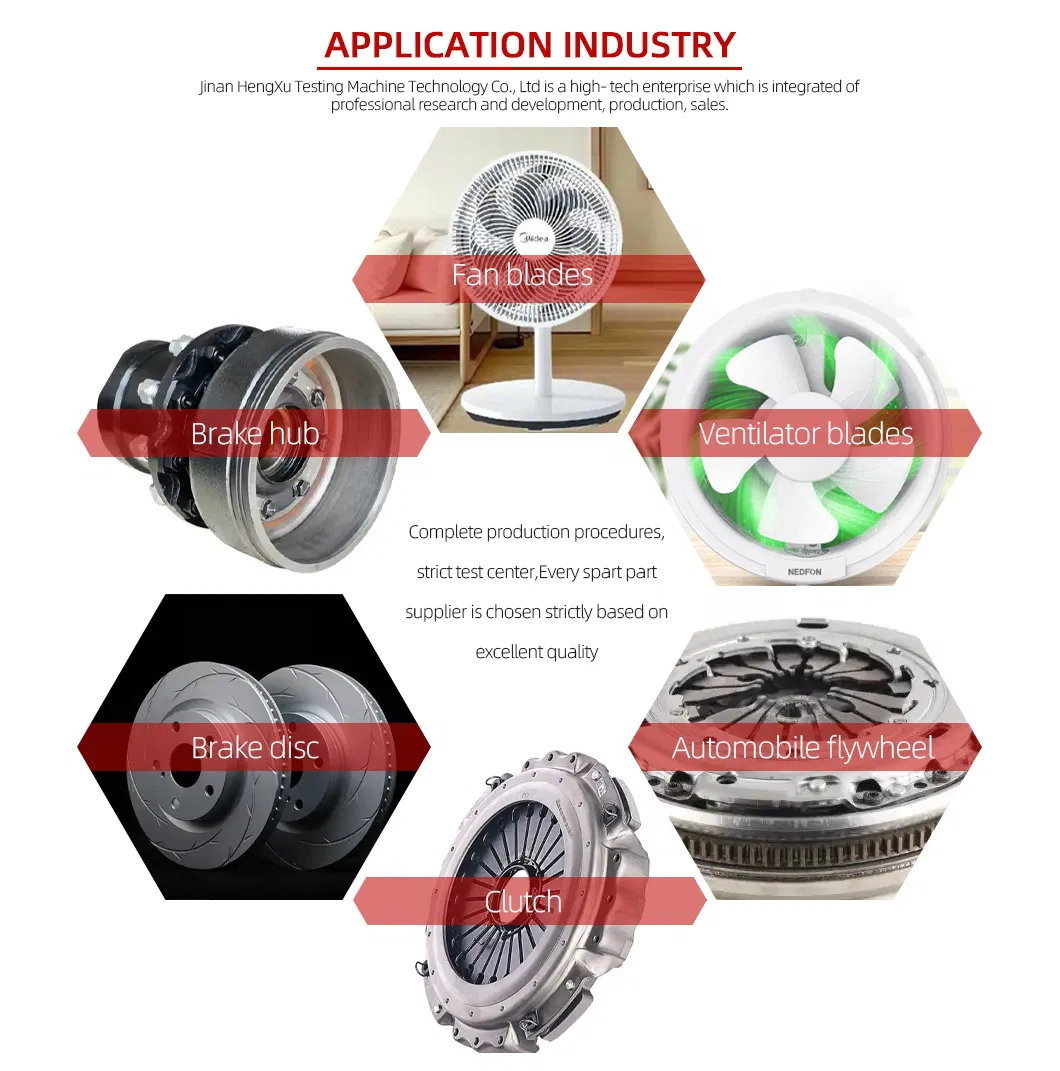

Introducing the extraordinary Dynamic Balancing Machine by HENGXU, a masterpiece crafted with precision to cater to a vast array of industries. From electric motors to textile machinery, this versatile powerhouse excels in balancing measurements across single, double, and multiple correction surfaces. Perfect for shafts, disks, and rotors with extended centers of gravity, it embodies high efficiency, precise accuracy, an intuitive display, and effortless maintenance. The epitome of quality, this machine is an invaluable asset for industries that demand the highest standards of operational excellence.
Main technical parameters
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Distance between two supports (mm) | Shaft diameter range (mm) | Diameter range of belt drive (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) |
| YYQ-3 | 0.1-3 | Ø350 | 30-450 | Ø3-22 | ≤Ø150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-5
|
0.1-5 | Ø400 | 50-600 | Ø3-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-10 | 1-10 | Ø500 | 30-600 | Ø5-60 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-16
|
0.3-16 | Ø500 | 60-600 | Ø5-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-50
|
1-50 | Ø900 | 80-800 | Ø8-70 | Ø18-250 | 300-1500 | ≤0.5 | ≥90 | 0.75 |
| YYQ-100
|
2-100 | Ø900 | 80-1000 | Ø10-140 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-160
|
2-160 | Ø950 | 100-1400 | Ø10-180 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-300
|
5-300 | Ø1200 | 150-1500 | Ø20-180 | Ø30-450 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-500
|
10-500 | Ø1500 | 150-1500 | Ø20-240 | Ø40-500 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-1000
|
10-1000 | Ø1500 | 150-2600 | Ø20-240 | Ø40-650 | 180-1450 | ≤0.5 | ≥90 | 5.5 |
| YYQ-1600
|
30-1600 | Ø1800 | 150-2600 | Ø20-240 | Ø40-800 | 180-1450 | ≤0.5 | ≥90 | 7.5 |
| YYQ-3000 | 100-3000 | Ø2000 | 150-2600 | Ø15-300 | Ø40-900 | 180-1450 | ≤0.5 | ≥90 | 11 |
1. Measurement System
Harnessing the power of a high-performance industrial control computer paired with a 19-inch LCD display, the machine operates on the robust Windows platform, ensuring a seamless and efficient user experience.
Vertical balancing machines are augmented by our proprietary universal balancing measurement system, integrating all essential functions of leading Chinese balancing software. With a user-friendly Chinese menu structure and text-prompted operational steps, the system offers ease of use, while large vertical machines benefit from software with angle tracking capabilities.
Delivering outstanding performance, the measurement system swiftly calibrates any workpiece with a wide speed range commencing at 80 rpm. It ensures rapid measurements with stable amplitude and phase, optimizes weight removal, and provides high sensitivity for impeccably precise results.
Equipped with an advanced allowable unbalance calculator, the software simplifies processes by allowing operators to input the vibration accuracy level, mass, working speed, and workpiece radius, thereby effortlessly determining the allowable residual unbalance in grams.
Our software is developed entirely in-house, offering unparalleled flexibility to modify or enhance it according to specific customer requirements, ensuring a tailored and bespoke solution for every client need.

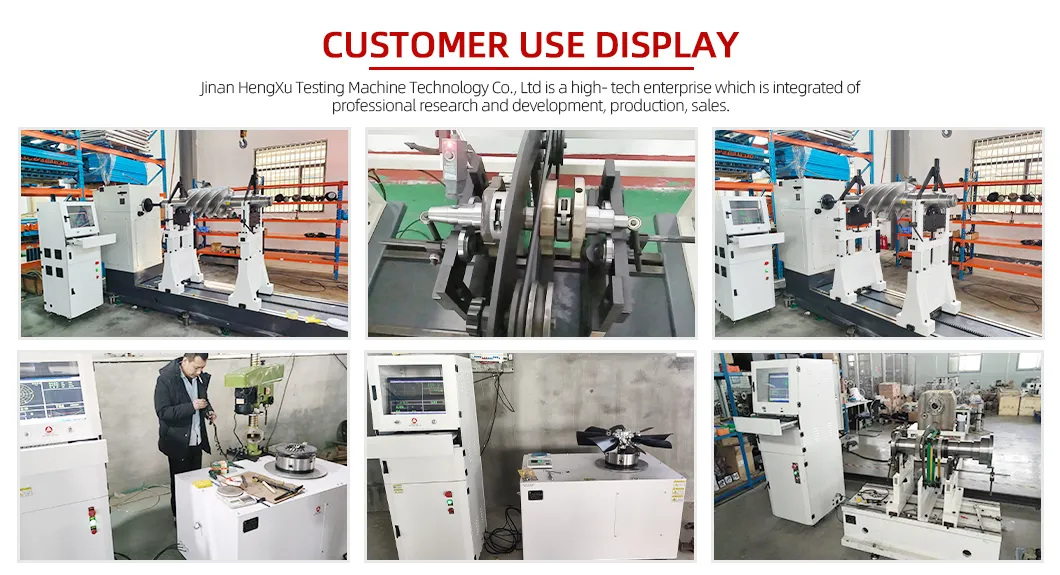

2. Mechanical Part and Control
Built with a robust casting base, vertical bracket, spindle seat, and support seat, this equipment offers exceptional rigidity and stability. Exceeding the standard model with an overload capacity of 20%, it stands as a testament to durability and strength.
Crafted from premium 45# carbon structural steel, the spindle undergoes meticulous forging, quenching, and fine grinding, ensuring axial and radial runout precision within an impressive 0.01mm. Its robust design precisely measures workpiece unbalances exceeding 30,000g*cm.
Employing a multi-V belt for power transmission, the machine ensures smooth and reliable operations, with minimal impact on balance measurements, thereby enhancing overall performance.
The integrated synchronous rotating dial within the spindle simplifies the identification of the unbalance angle, enabling swift and precise adjustments with ease.
With a spindle featuring an innovative hollow structure and a rotating cylinder connection, rapid workpiece clamping using a pull rod and pneumatic chuck or tooling is achieved, optimizing operational efficiency.
This top-tier equipment boasts a variable frequency speed regulation system, benefiting from a gentle motor soft start and stop, reducing impact, extending equipment lifespan, and promoting continuous operation with straightforward maintenance.

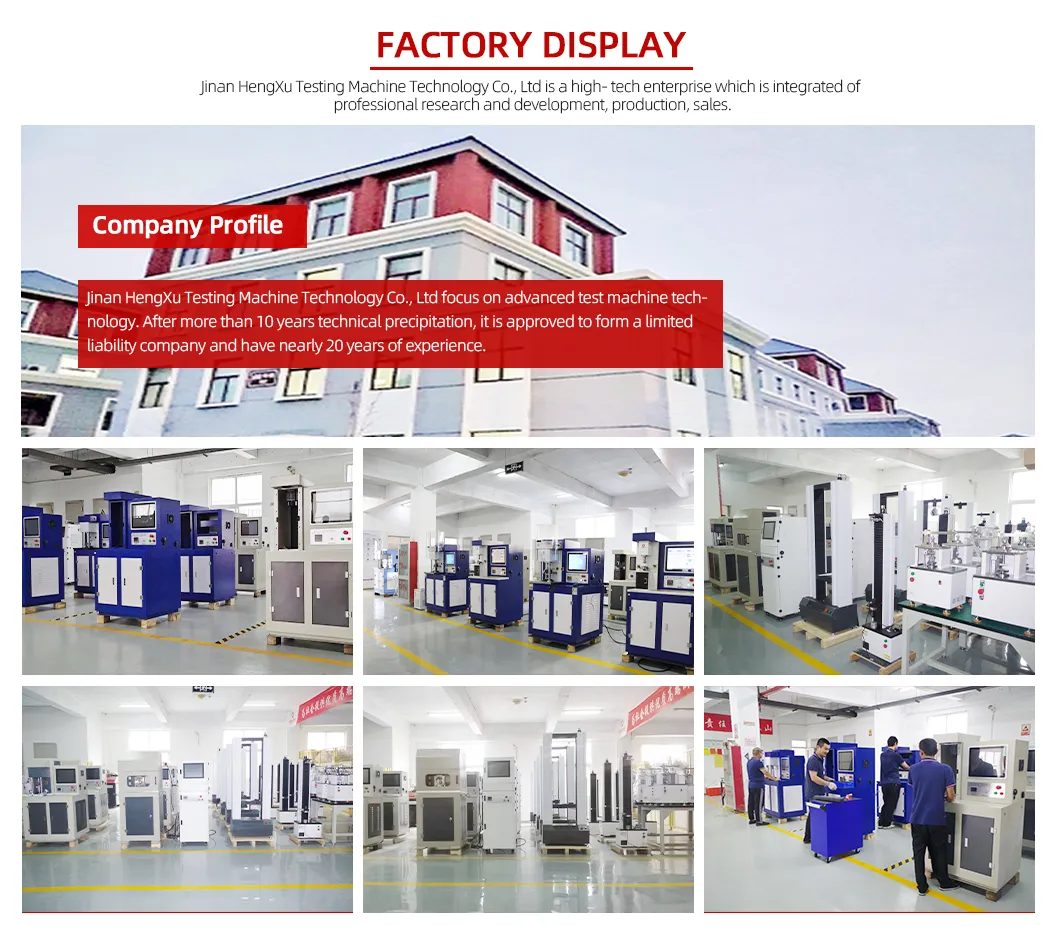

Founded in 2007, Jinan HengXu Testing Machine Technology Co., Ltd. has rapidly risen to prominence as a leader in China's testing industry, securing its place as a premier high-tech enterprise. HengXu excels in the innovative research, development, and production of state-of-the-art testing machines. With a distinct expertise in friction wear testing and mechanical testing for advanced materials, HengXu has established a strong reputation, garnering extensive recognition and trust from a wide-ranging clientele. Our commitment to excellence was showcased last year with an impressive sales milestone surpassing 100 million RMB. Embark on a journey of innovation and reliability with us, where advanced testing technologies seamlessly blend with exceptional customer satisfaction.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.
Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!
- Model NO.:
- YYQ-16
- Max Diameter of Workpiece:
- 2400mm
- Mass Scope of Workpiece:
- 10000kg
- Type:
- Balancing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 1
- Load Way:
- Electronic Load
- Loading Method:
- Dynamic Load
- Display:
- Computer
- Control:
- Computer Control
- Weight:
- >2000Kg
- Power Source:
- AC380V
- Oil Cylinder Position:
- No
- Transport Package:
- Wooden Boxes That Meet Export Requirements
- Specification:
- 630*670*1600, 1100*800*740
- Trademark:
- HENGXU
- Origin:
- China
- HS Code:
- 9031100090
- Production Capacity:
- 1000
- Package Size:
- 200.00cm * 50.00cm * 1000.00cm
- Package Gross Weight:
- 1100.000kg
