YYQ-1600A Dynamic Balancing Machine Made in China-Superior Quality and Performance
Product Description

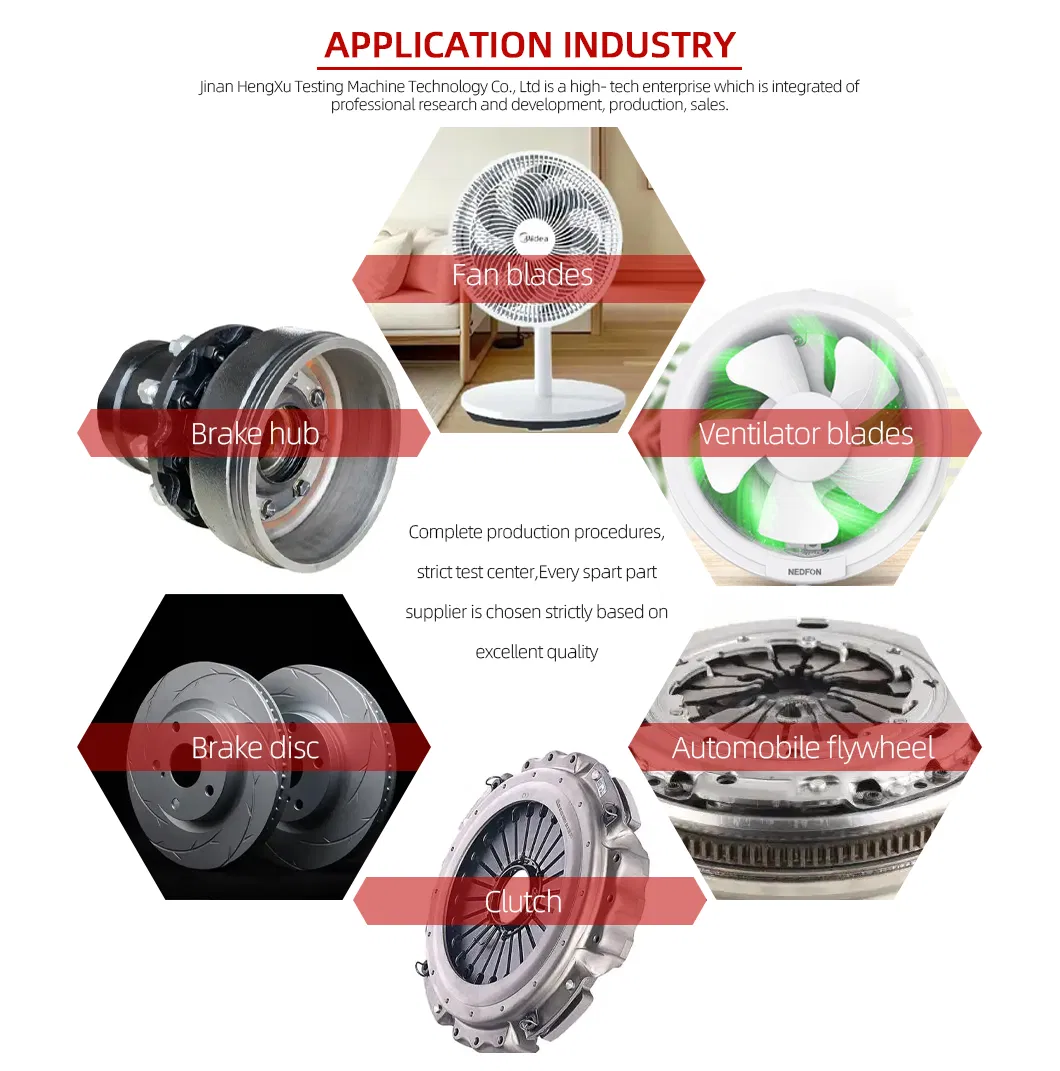

Introducing the exceptional Dynamic Balancing Machine from HENGXU, your ultimate solution for a myriad of industries, including electric motors, blowers, diesel engines, agricultural machinery, and textile machinery. This expertly crafted machine is engineered for supreme versatility, performing precise balancing measurements across single, double, and multiple correction surfaces. Whether dealing with shafts, disks, or rotors with extended centers of gravity, this machine delivers unparalleled efficiency and precision. With its intuitive display, superior quality, and effortless maintenance, it's an indispensable tool for industries that prioritize excellence and demand the very best.
Main technical parameters
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Distance between two supports (mm) | Shaft diameter range (mm) | Diameter range of belt drive (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) |
| YYQ-3 | 0.1-3 | Ø350 | 30-450 | Ø3-22 | ≤Ø150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-5
|
0.1-5 | Ø400 | 50-600 | Ø3-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.1 |
| YYQ-10 | 1-10 | Ø500 | 30-600 | Ø5-60 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-16
|
0.3-16 | Ø500 | 60-600 | Ø5-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 |
| YYQ-50
|
1-50 | Ø900 | 80-800 | Ø8-70 | Ø18-250 | 300-1500 | ≤0.5 | ≥90 | 0.75 |
| YYQ-100
|
2-100 | Ø900 | 80-1000 | Ø10-140 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-160
|
2-160 | Ø950 | 100-1400 | Ø10-180 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 |
| YYQ-300
|
5-300 | Ø1200 | 150-1500 | Ø20-180 | Ø30-450 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-500
|
10-500 | Ø1500 | 150-1500 | Ø20-240 | Ø40-500 | 300-1500 | ≤0.5 | ≥90 | 4 |
| YYQ-1000
|
10-1000 | Ø1500 | 150-2600 | Ø20-240 | Ø40-650 | 180-1450 | ≤0.5 | ≥90 | 5.5 |
| YYQ-1600
|
30-1600 | Ø1800 | 150-2600 | Ø20-240 | Ø40-800 | 180-1450 | ≤0.5 | ≥90 | 7.5 |
| YYQ-3000 | 100-3000 | Ø2000 | 150-2600 | Ø15-300 | Ø40-900 | 180-1450 | ≤0.5 | ≥90 | 11 |
1. Measurement System
Our Balancing Machine is outfitted with a cutting-edge industrial control computer and a 19-inch LCD display, operating on the Windows platform to ensure a flawless user experience, making balance measurements smoother and more efficient.
Vertical balancing machines are now enhanced with our proprietary universal balancing measurement system, integrating all essential functions of leading balancing software in China. The system is designed with an intuitive Chinese menu structure and text-guided operational steps, while larger vertical machines feature software with angle tracking capabilities, enhancing precision.
Harnessing powerful performance, the measurement system rapidly calibrates any workpiece across an extensive speed range starting at 80 rpm. It guarantees swift measurements with stable amplitude and phase, optimizing weight removal, and it offers high sensitivity for impeccably accurate results.
Our software includes a sophisticated allowable unbalance calculator. By inputting the vibration accuracy level, mass, working speed, and workpiece radius, operators can effortlessly calculate the allowable residual unbalance in grams, significantly simplifying the balancing process.
The software is entirely self-developed, offering unparalleled flexibility to modify or enhance it based on specific customer requirements, ensuring every client's needs are met with a tailored solution.

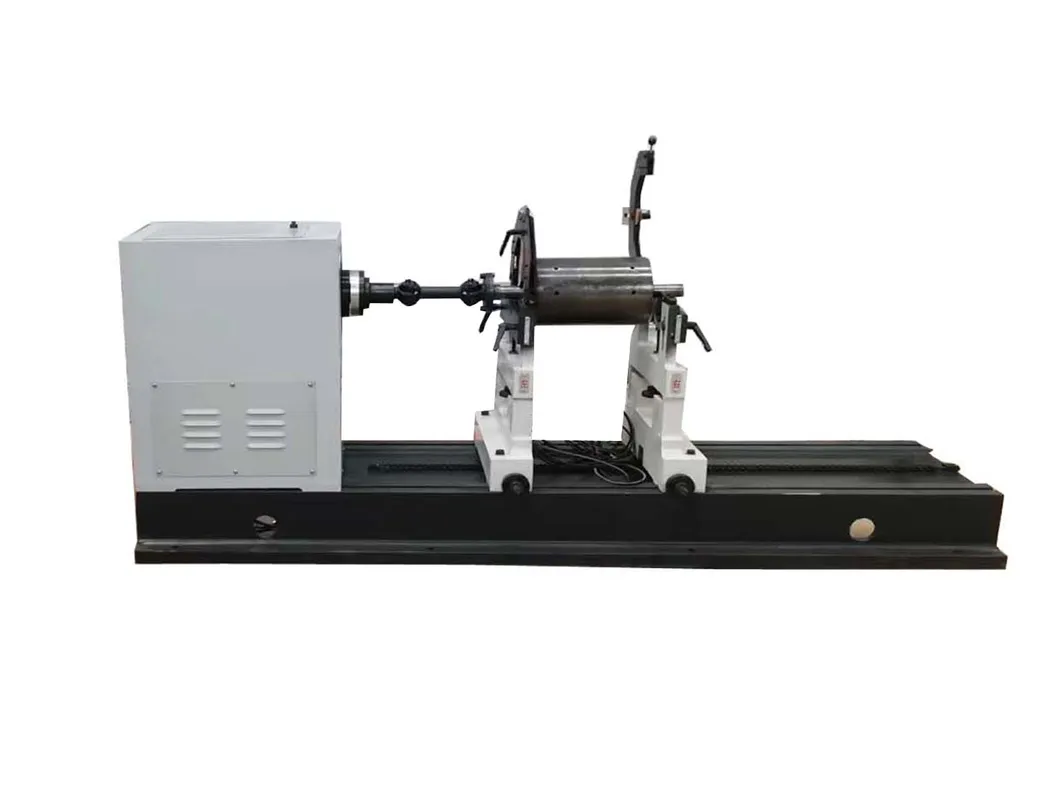

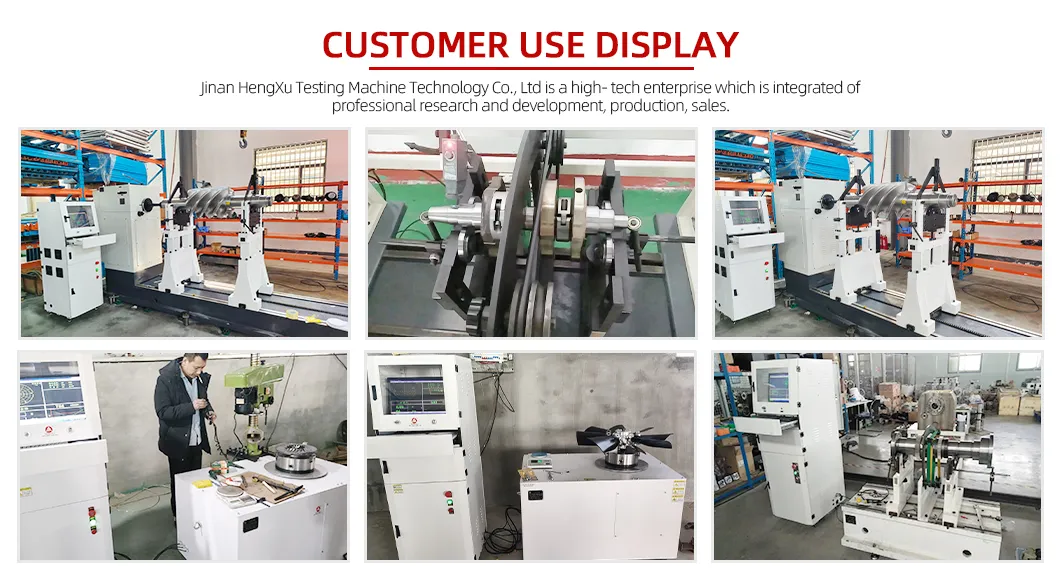

2. Mechanical Part and Control
Built with a robust casting base, vertical bracket, spindle seat, and support seat, the equipment offers exceptional rigidity and stability. It features an impressive 20% overload capacity beyond the standard model, demonstrating its durability and reliability.
The spindle, crafted from premium 45# carbon structural steel, undergoes precise forging, quenching, and fine grinding, ensuring axial and radial runout precision within 0.01mm. Its reinforced design effectively measures workpiece unbalances exceeding 30,000g*cm.
Employing a multi-V belt for power transmission ensures smooth, reliable operations with minimal impact on balance measurements, enhancing the machine's overall performance and longevity.
An integrated synchronous rotating dial in the spindle simplifies the unbalance angle identification process, enabling swift and precise adjustments.
The spindle's innovative hollow design, combined with a rotating cylinder connection, allows for rapid workpiece clamping using a pull rod and pneumatic chuck or tooling, significantly optimizing operational efficiency.
This premium-grade equipment, featuring a variable frequency speed regulation system, benefits from a gentle motor soft start and stop, which reduces impact, extends the equipment's lifespan, and supports continuous operation with straightforward maintenance.

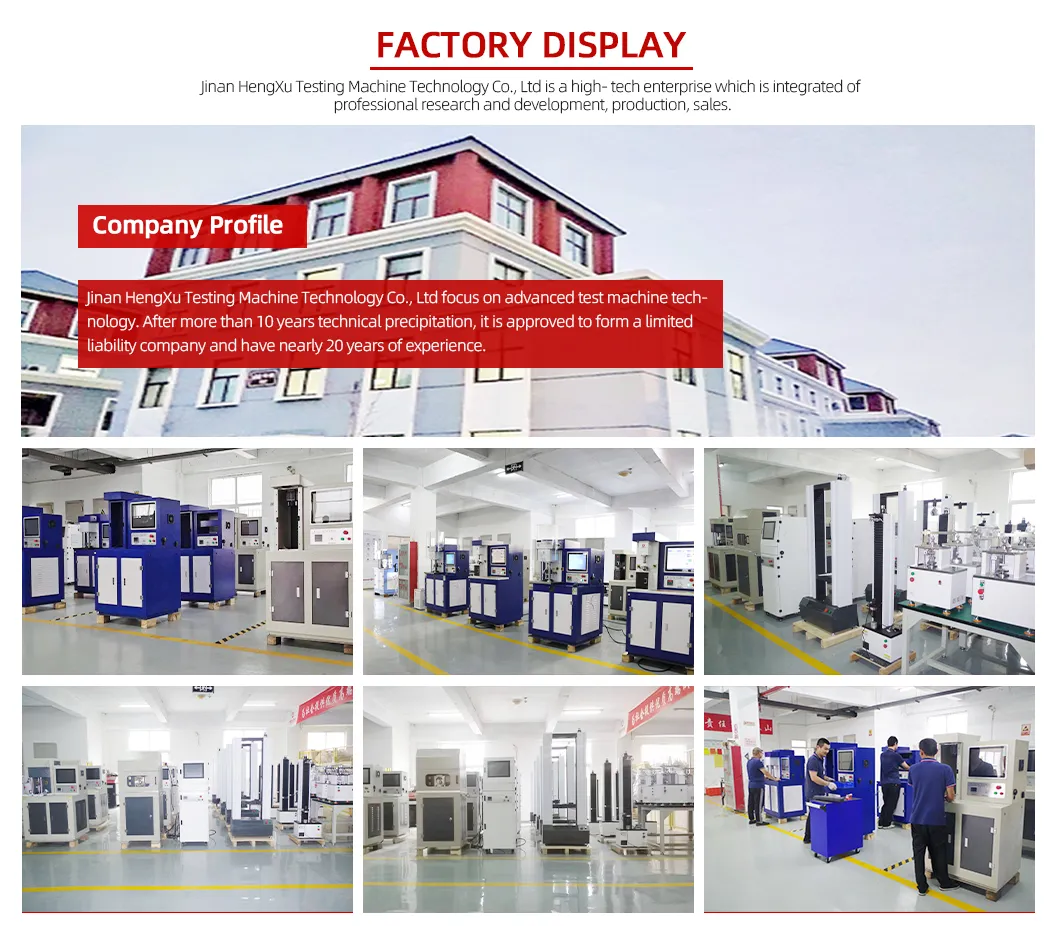

Founded in 2007, Jinan HengXu Testing Machine Technology Co., Ltd. has swiftly ascended to the top echelons of China's testing industry, distinguishing itself as a premier high-tech enterprise. Our forte lies in pioneering the research, development, and manufacturing of cutting-edge testing machines. With a specialized focus on friction wear testing and mechanical testing for advanced materials, HengXu has carved a niche for itself, earning widespread acclaim and trust from a diverse clientele. Last year, our dedication to excellence was reflected in a remarkable sales achievement of over 100 million RMB. Join us on a journey of innovation and reliability, where advanced testing technologies meet unparalleled customer satisfaction.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.

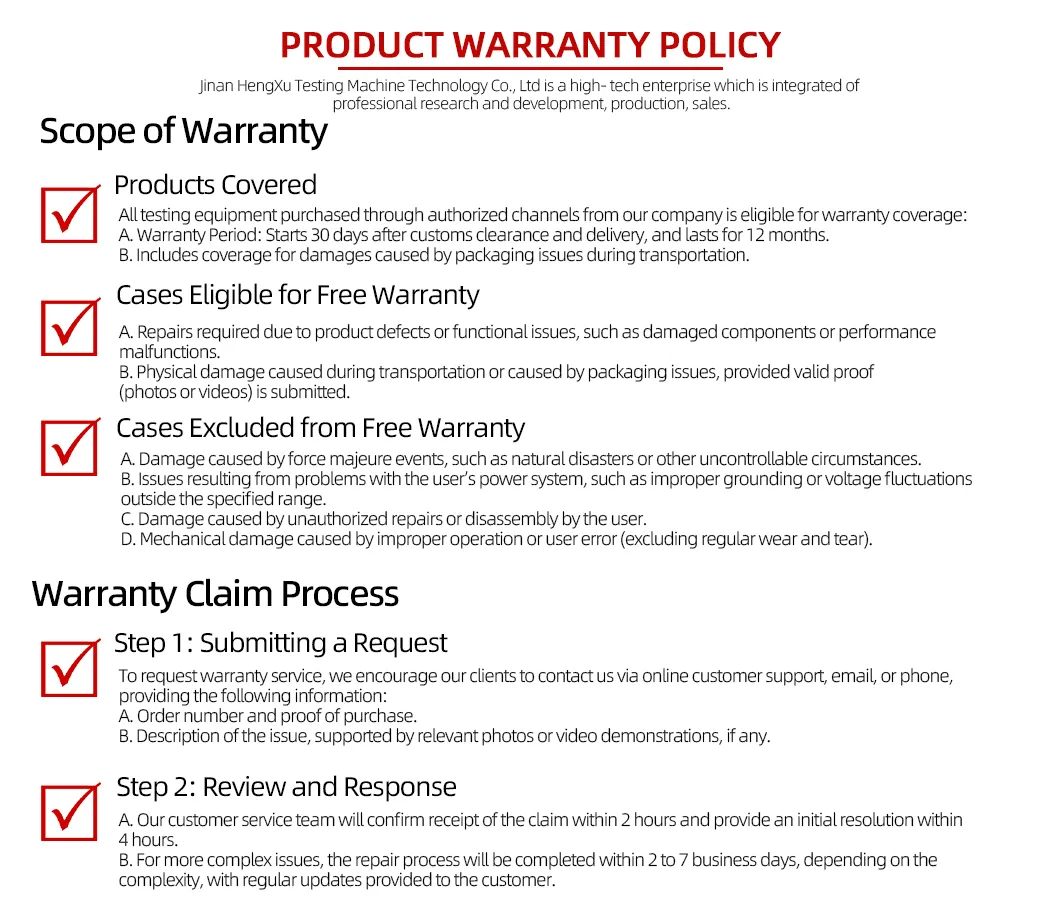

Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!
- Model NO.:
- YYQ-1600A
- Max Diameter of Workpiece:
- 2400mm
- Mass Scope of Workpiece:
- 10000kg
- Type:
- Balancing Machine
- Maxcapacity:
- >1000KN
- Accuracy Grade:
- 1
- Load Way:
- Electronic Load
- Loading Method:
- Dynamic Load
- Display:
- Digital
- Control:
- Computer Control
- Weight:
- >2000Kg
- Power Source:
- AC380V
- Oil Cylinder Position:
- No
- Transport Package:
- Wooden Boxes That Meet Export Requirements
- Specification:
- 630*670*1600, 1100*800*740
- Trademark:
- HENGXU
- Origin:
- China
- HS Code:
- 9031100090
- Production Capacity:
- 1000
- Package Size:
- 200.00cm * 50.00cm * 1000.00cm
- Package Gross Weight:
- 1100.000kg
