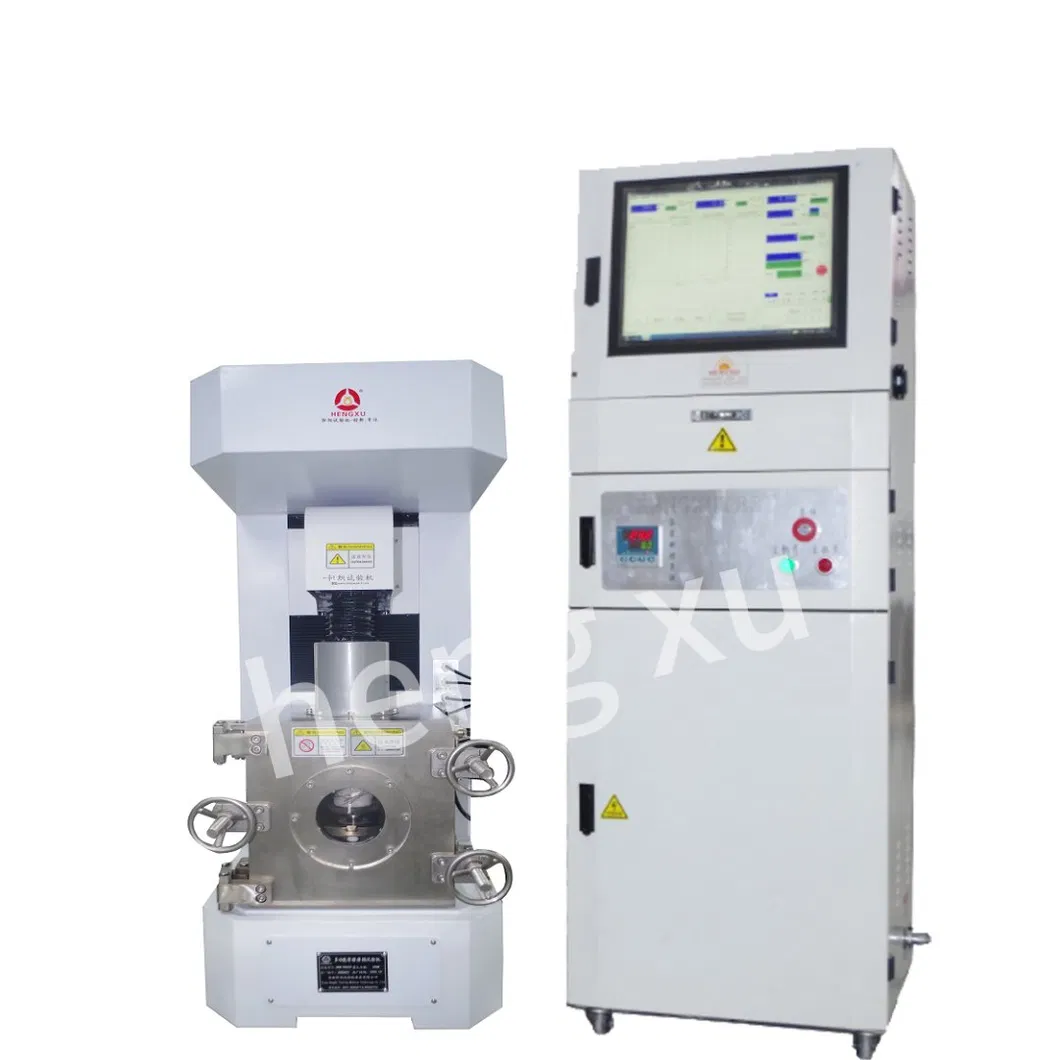

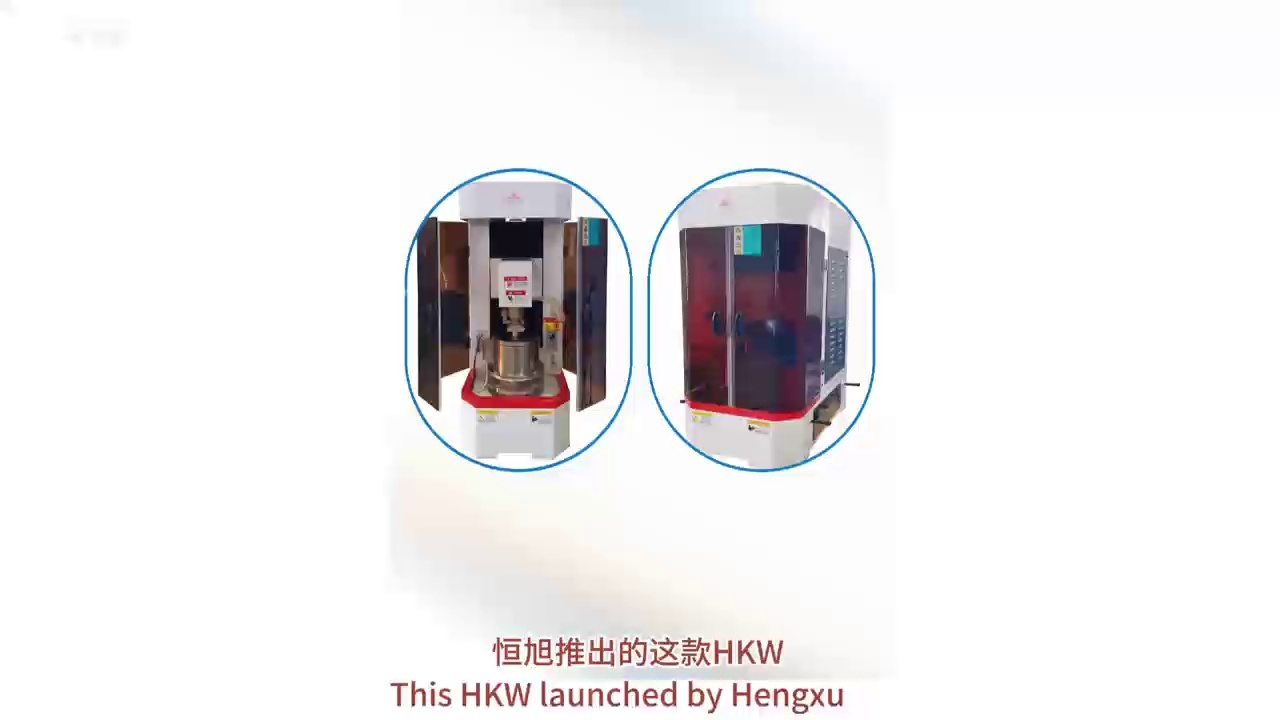

HKW-2000 Multi-Functional Multi-Condition Friction and Wear Testing Machine
Product Description
Our multi-function friction and wear testing machine is a versatile system designed to evaluate the friction and wear properties of materials and surface coatings, supporting reciprocating, rotating, and sliding friction tests. The tester can be used for various testing configurations, including pin-on-disk, ball-on-disk, and end-face friction, with the option to expand to additional modules. It also includes specialized HCW modules for high and low-temperature tests, salt spray corrosion tests, and vacuum testing environments. These customizable features make our testing machines is ideal for comprehensive material performance analysis under diverse conditions.
Standards
- ASTM D-3702-94: Coefficient of friction and wear rate testing with thrust washer methods
- ASTM G-99: Pin-on-disk method for wear and friction analysis
- ASTM D-2266-01: Lubricating oil wear testing using the four-ball method
- ASTM-G133 Standard Test Method for Linearly Reciprocating Ball-on-Flat Sliding Wear
Applications
Commonly used across industries such as petrochemicals, machinery, energy, transportation, metallurgy, aerospace, automotive manufacturing, and lubrication engineering. The multi-function friction and wear testing system is also an important tool for research institutions and universities, supporting advanced material testing and surface durability analysis.
Features
Fully compliant with most ISO and ASTM standards, ensuring consistent and reliable results
- Includes a heating system with a high-temperature alarm to ensure stability during long-duration tests
- Capable of real-time data collection at a sampling frequency of up to 50kps, providing dynamic and detailed analysis of test results
- Features automatic shutdown or alarm triggers when preset test parameters are exceeded, ensuring safe and efficient operation
Main technical parameters
| No | Project | Parameter | |
| 1 | Maximum test force | 200N/500N/1000N,error ± 1% | |
| 2 | Loading mode | Automatic loading (closed loop control) | |
| 3 | Force sensor | 20/50/100kg | |
| 4 | Reciprocating friction | Reciprocating frequency | 0~20Hz |
| Linear velocity | 0.1m/min~10m/min, based on stroke calculation, stepless adjustable, error ± 5% | ||
| Form of friction | Surface-to-surface friction of pin on disc, simulation wear test of pipe cylinder surface, optional additional configuration (column and plate rolling friction, ball and inventory line friction) | ||
| Reciprocating stroke | 0.2mm~20mm | ||
| Measurement of friction force | Dynamic friction measurement of acceleration | ||
| Force measurement accuracy | ± 1% | ||
| Sample size | Pin sample:φ4-10mm (standard 4mm,4.8mm,5mm optional), ball sample φ6.35, disk sample φ<80mm, disc thickness≤10mm (standard configuration φ75mm, thickness 4mm) | ||
| *Note: this module is the standard basic module | |||
| 5 | Rotational friction | Max rotating speed | 2000rpm |
| Rotation accuracy | ±1rpmin | ||
| Diameter of rotation | 80mm | ||
| Form of friction | Pin disc friction,(optional ball disc friction and end face friction) | ||
| Friction medium | Dry and wet pin on disc friction, end face friction, adjustable oil drop lubrication 40ml/min( optional ) | ||
| Force sensor | 200N | ||
| Force measurement accuracy | ±1% | ||
| Sample size | Pin sample:φ4-10mm (standard 4mm,4.8mm,5mm optional), ball sample φ6.35, disk sample φ<80mm, disc thickness≤10mm (standard configuration φ75mm, thickness 4mm) | ||
| *Note: This module is an optional module, which can be added with a normal-temperature standard rotating module or an ultrahigh temperature rotating module | |||
| 6 | Ring on block friction | Max ring speed | 2000rpm |
| Rotation accuracy | ± 1% | ||
| Diameter of friction ring | 20-50mm(standard 40mm) | ||
| Form of friction | adjustable oil drop lubrication 40ml/min | ||
| Force sensor | 10kg | ||
| Force measurement accuracy | ± 1% | ||
| *Note: This module is an optional additional module as a whole | |||
| 7 | Temperature measurement mode | PT100/thermocouple | |
| 8 | Online grinding measurement | Photoelectric measurement (optional extra module) | |
| 9 | Resolution of wear measurement | 0.001mm | |
| 10 | Lifting height | 0~100mm | |
| 11 | Precision of guide rail | △C not more than 5 μm,△D not more than 8 μm) | |
| 12 | Time display mode and control | 10S-9999H (frequency and reciprocating frequency mode) | |
| 13 | Data processing | A set of standard Advantech special computer processing system | |
| 14 | Optional extended functions | Independent functions such as high-temperature rotation module, electrochemical corrosion friction module, conventional high and low temperature environmental testing module (HCW), salt spray corrosion testing module (HCW), vacuum environmental testing module (HCW), ultra-low temperature module (HCW), current carrying friction module, and abrasion measurement module (all functions are optional) | |
| 15 | Main drive motor power | 750W/1000W/1500W | |
| 16 | Module drive motor power | 500W/750W/1000W | |
| 17 | software function | The equipment configuration software can realize the integrated display of load, friction force, friction temperature, reciprocating frequency, friction coefficient, wear amount and wear volume; Draw parameter curves in real time and save real-time data; Compare and analyze the data at the stage and generate the test report. | |
| 18 | Size | Mainframe:450*800*1050(mm) Control cabinet:580*620*1600 (mm) |
|
| 19 | Weight | 400kg | |
