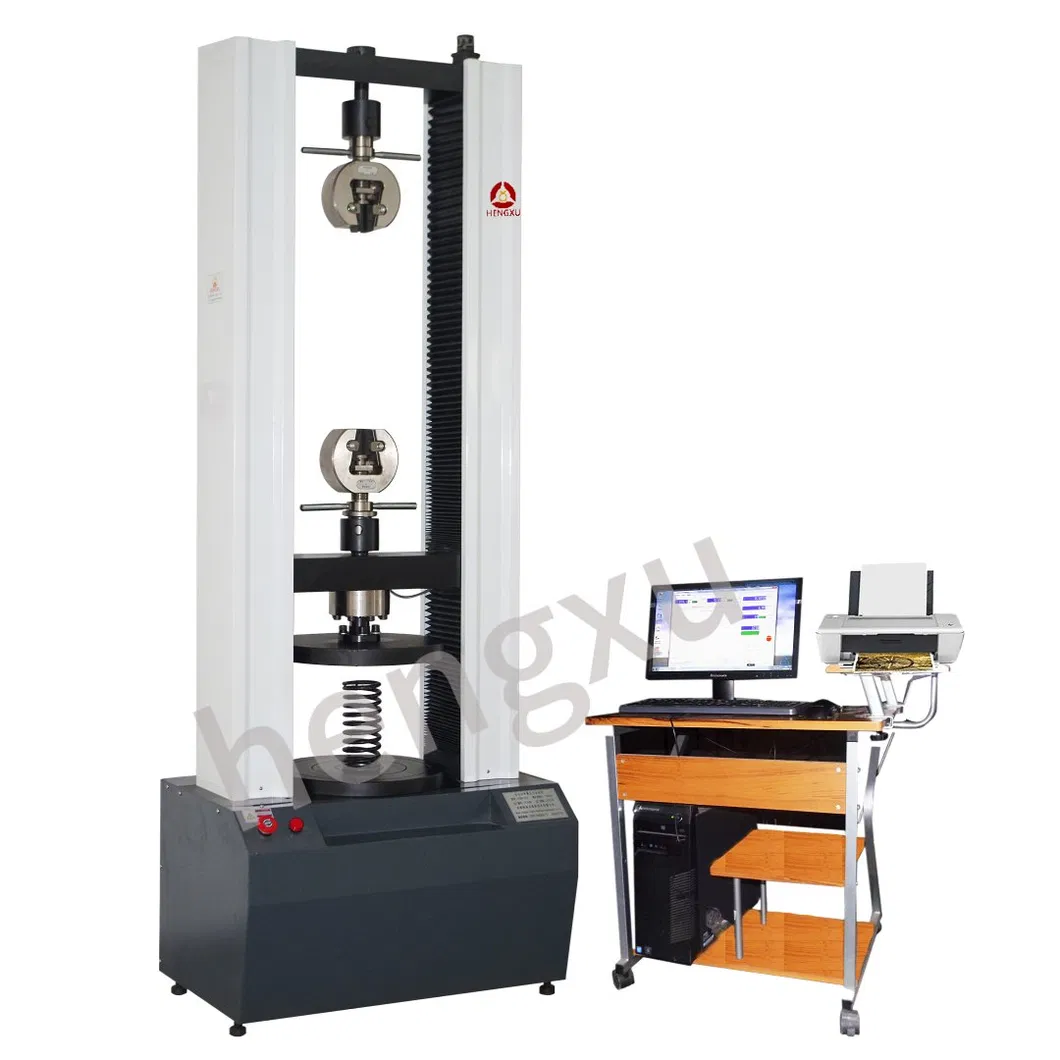

HDW-Microcomputer Controlled Stability Easy to Operate Double Arm Electronic Universal Tensile Testing Machine
Main Application
This series of tensile testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.and suitable for testing the mechanical properties of various metals, non-metals and composite materials such as rubber, plastics, textiles, waterproof materials, wires and cables, net ropes, metal wires, etc. For example, various tensile tests can be easily completed by changing the accessories to complete compression, bending, shearing, tearing, peeling, puncture and other tests.

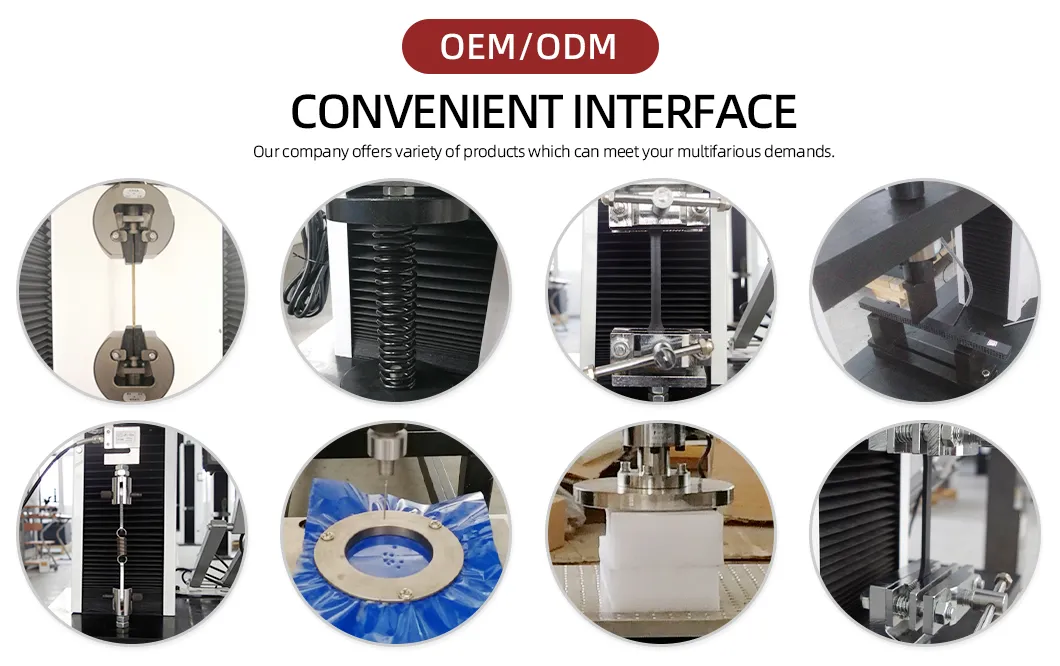

Achieving precision in material testing is important to ensure quality and performance, and the microcomputer-controlled universal testing machine offers exactly that. Equipped with an AC stepper motor and a digital servo speed control system, these electronic universal testing machines provides reliable force application during mechanical tests. Its arc synchronous belt and precision ball screw assembly ensure smooth operation. While primarily used for tensile testing, this testing system easily adapts to other tests, including compression, bending, shearing, tearing, peeling, and puncture, by changing fixtures.
| Name | Computer control universal Testing machine specification | ||||||
| Model | HDW-5 | HDW-10 | HDW-20 | HDW-50 | HDW-100 | HDW-300 | |
| Structure | 2 columns | ||||||
| Max. Load(KN) | 5 | 10 | 20 | 50 | 100 | 300 | |
| Load Range | 2%~100% full Scale or 0.4%-100% Full Scale | ||||||
| Load Accuracy | ±1% or ±0.5% | ||||||
| Resolution of load | 1/300000 of full scale | ||||||
| Measuring Range Of Deformation | 2%~100% | ||||||
| Resolution of Displacement | 0.001mm | ||||||
| Accuracy measure Of Deformation | ±1% o r±0.5% | ||||||
| Control Speed | 0.1-500(mm/min) | 0.1-200(mm/min) | |||||
| Relative Error of Speed: | ≤±1% | ||||||
| Tensile Test Space | 650mm | ||||||
| Compression Test Space | 650mm | ||||||
| Load Cell Configuration | One(Max Load), more load cells can be added according to customer requirement. | ||||||
| Extend Configuration | Large deformation extensometer, high or low temperature test chamber, high temperature oven. | ||||||
| Protection function | The test machine has the function of overload and limit protection | ||||||
| Test machine size(mm) | 730*360*1750 | 740*500*1820 | 800*480*1870 | 1130×650×2650 | |||
| Power Supply | AC110V / 220V / 380V±10%, 50Hz-60Hz | ||||||
| Weight(KG) | 300 | 350 | 400 | 1500 | |||
Jinan HengXu Testing Machine Technology Co., Ltd., established in 2007, is a prominent hightech enterprise specializing in the research, development, and production of testing machines. With a focus on friction wear testing and mechanical testing for advanced materials, the company has become a leading player in China's testing industry. HengXu stands out due to its advanced testing technologies and strong customer trust, achieving over 100 million RMB in sales in 2023.
- Model NO.:
- HDW-100
- Max Diameter of Workpiece:
- 30mm
- Mass Scope of Workpiece:
- <1kg
- Type:
- Strength Testing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 0.5
- Load Way:
- Electronic Load
- Loading Method:
- Static Load
- Display:
- Export Standard Wooden Crates
- Control:
- Computer Control
- Weight:
- 100-500Kg
- Power Source:
- AC220V
- Oil Cylinder Position:
- No
- Max. Load:
- 5kN
- Load Range:
- 2%~100% Full Scale
- Load Accuracy:
- ±1%
- Resolution of Load:
- 1/300000 of Full Scale
- Measuring Range of Deformation:
- 2%~100%
- Resolution of Displacement:
- 0.001mm
- Accuracy Measure of Deformation:
- ±1%
- Control Speed:
- 0.1-500(mm/Min)
- Relative Error of Speed:
- ≤±1%
- Tensile Test Space:
- 600mm
- Compression Test Space:
- 600mm
- Load Cell Configuration:
- One(Max Load), More Load Cells Can Be Added Accord
- Extend Configuration:
- Large Deformation Extensometer, High or Low Temper
- Protection Function:
- The Test Machine Has The Function of Overload and
- Size:
- 730*360*1750 mm
- Transport Package:
- Export Standard Wooden Crates
- Specification:
- 730*360*1750mm
- Trademark:
- HENGXU
- Origin:
- China
- Production Capacity:
- 1000
- Package Size:
- 730.00cm * 360.00cm * 1750.00cm
- Package Gross Weight:
- 310.000kg
