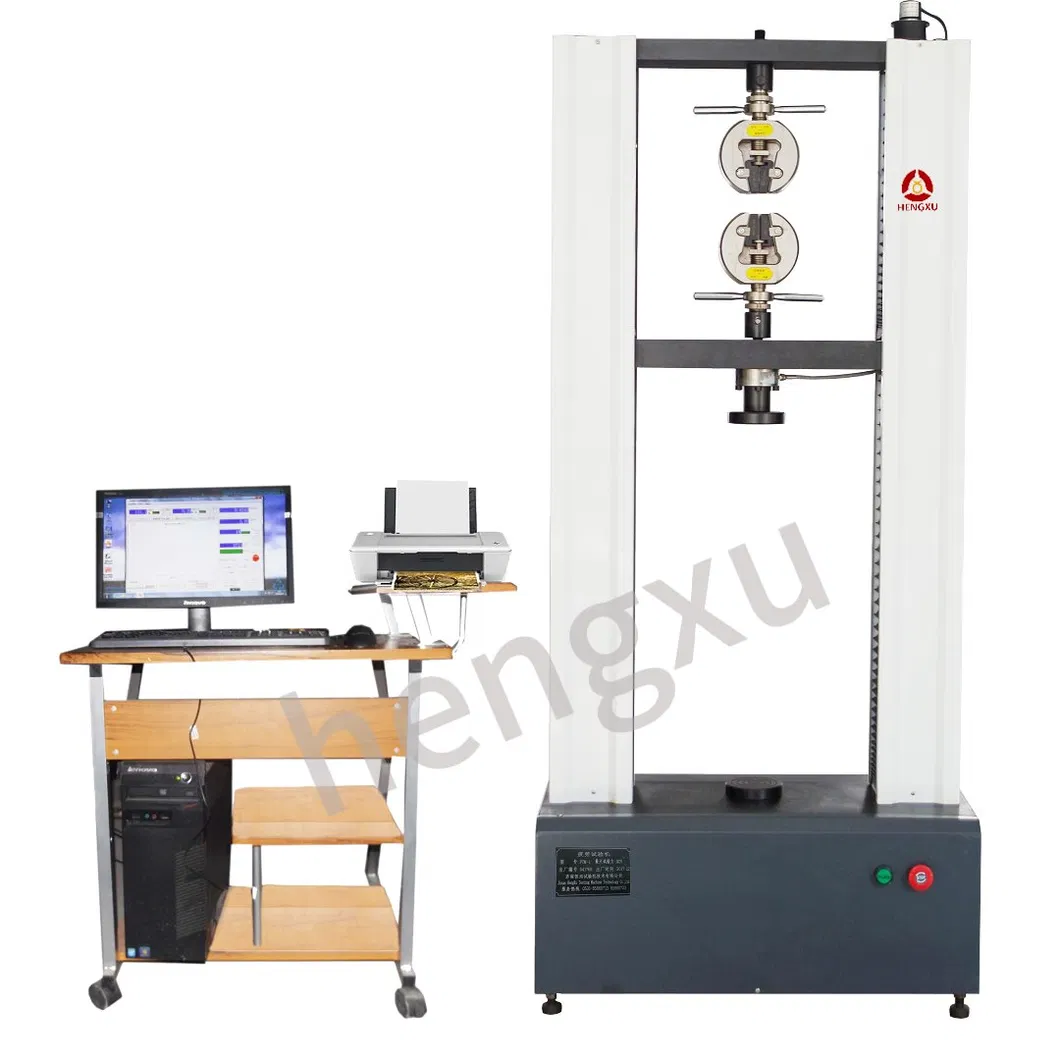

HDW-5 Computer Control 5kN500kg Advanced Affordable Tensile Testing Machine for Building Material Manufacturer
Product Description
Main Application

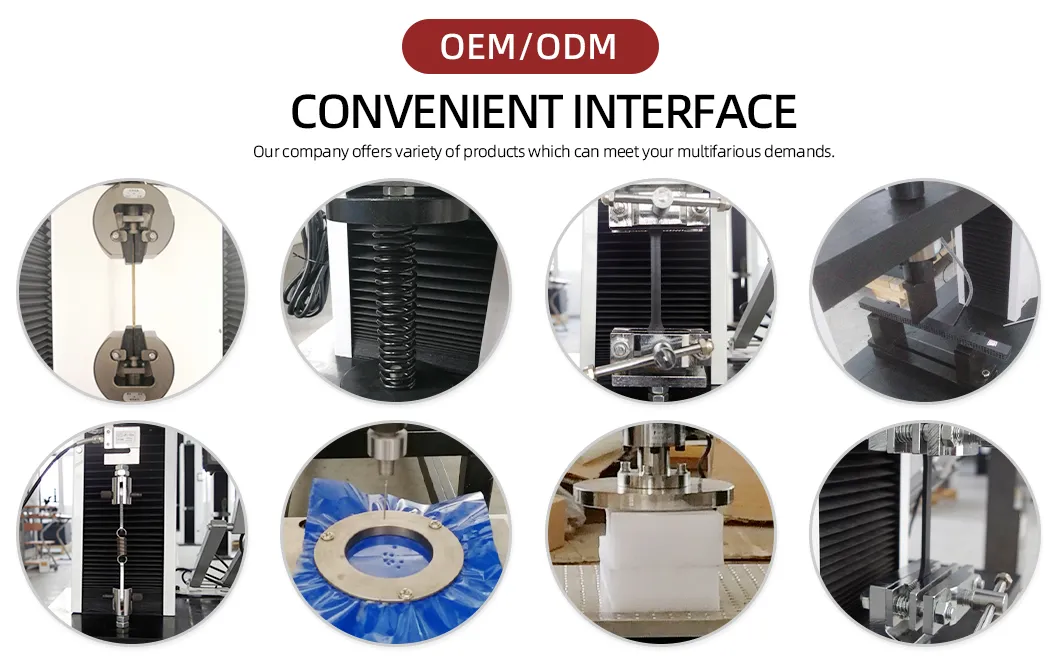

This series of tensile testing machines are meticulously crafted and rigorously meet ASTM, ISO, DIN, GB, and a variety of other international standards. Perfectly tailored to evaluate the mechanical properties across a spectrum of materials, these machines excel in testing metals, non-metals, and composites, including rubber, plastics, textiles, waterproof materials, wires, cables, net ropes, and metal wires.Easily adaptable, the machine facilitates a myriad of tests such as compression, bending, shearing, tearing, peeling, puncture, and others, simply by modifying the accessories. It's a versatile solution for diverse testing needs.
Precision is paramount in material testing, ensuring unparalleled quality and performance, and our microcomputer-controlled universal testing machine embodies this precision flawlessly. Outfitted with a sophisticated AC stepper motor and an advanced digital servo speed control system, it ensures dependable force application throughout mechanical testing. The arc synchronous belt coupled with a precision ball screw assembly guarantees seamless operation. While it excels in tensile testing, its versatility allows easy adaptation for other testing types, including compression, bending, shearing, tearing, peeling, and puncture, through the simple alteration of fixtures.
| Specification Data | Configurations |
| 1,Max. Load:5000N ; 2, Load Range:2%~100% full Scale 3,Load Accuracy;±1% 4,Resolution of load:1/300000 of full scale 5,Measuring Range Of Deformation:2%~100% 6,Resolution of Displacement:0.001mm 7,Accuracy measure Of Deformation:±1% 8,Control Speed (mm/min):0.1-500(mm/min) 9,Relative Error of Speed:≤±1% 10,Tensile Test Space:650mm 11,Compression Test Space:650mm 12,Load Cell Configuration:One(Max Load), more load cells can be added according to customer requirement. 13.Extend Configuration:Large deformation extensometer, high or low temperature test chamber, high temperature oven. 14,Test machine size:730*360*1750 mm 15,Power Supply:AC110V / 220V / 380V±10%, 50Hz-60Hz 16,Protection function: the test machine has the function of overload and limit protection 17,Weight:260kg |
|

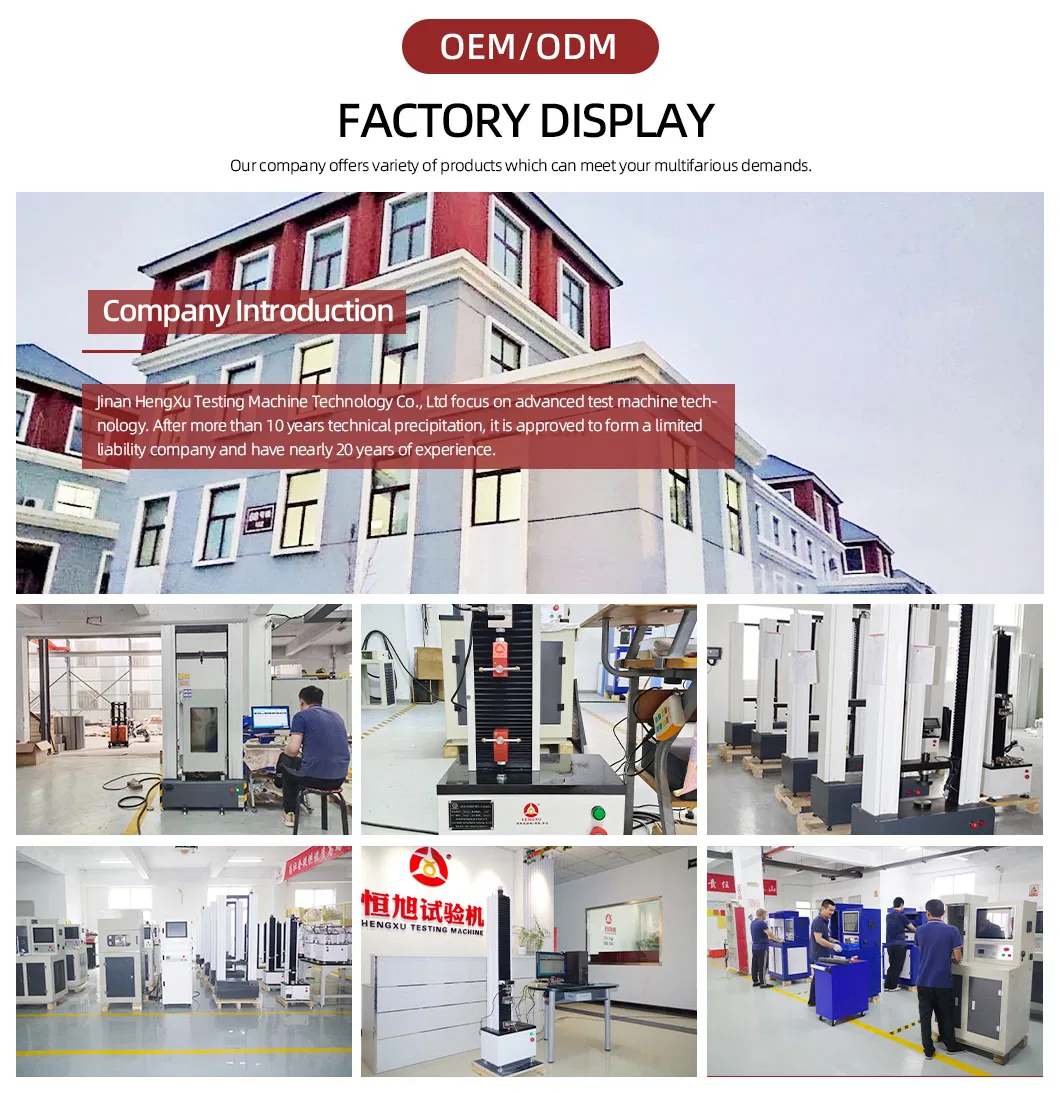

Jinan HengXu Testing Machine Technology Co., Ltd., founded in 2007, is a distinguished high-tech enterprise dedicated to the innovation and production of cutting-edge testing machines. Specializing in friction wear testing and mechanical testing for advanced materials, HengXu has established itself as a forerunner in China's testing industry. With a reputation for advanced testing technologies and robust customer trust, the company achieved sales surpassing 100 million RMB in 2023, a testament to its industry leadership.
- Model NO.:
- HDW
- Max Diameter of Workpiece:
- 30mm
- Mass Scope of Workpiece:
- <1kg
- Type:
- Strength Testing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 0.5
- Load Way:
- Electronic Load
- Loading Method:
- Static Load
- Display:
- Export Standard Wooden Crates
- Control:
- Computer Control
- Weight:
- 100-500Kg
- Power Source:
- AC220V
- Oil Cylinder Position:
- No
- Max. Load:
- 5kN
- Load Range:
- 2%~100% Full Scale
- Load Accuracy:
- ±1%
- Resolution of Load:
- 1/300000 of Full Scale
- Measuring Range of Deformation:
- 2%~100%
- Resolution of Displacement:
- 0.001mm
- Accuracy Measure of Deformation:
- ±1%
- Control Speed:
- 0.1-500(mm/Min)
- Relative Error of Speed:
- ≤±1%
- Tensile Test Space:
- 600mm
- Compression Test Space:
- 600mm
- Load Cell Configuration:
- One(Max Load), More Load Cells Can Be Added Accord
- Extend Configuration:
- Large Deformation Extensometer, High or Low Temper
- Protection Function:
- The Test Machine Has The Function of Overload and
- Size:
- 730*360*1750 mm
- Transport Package:
- Export Standard Wooden Crates
- Specification:
- 730*360*1750mm
- Trademark:
- HENGXU
- Origin:
- China
- Production Capacity:
- 1000
- Package Size:
- 730.00cm * 360.00cm * 1750.00cm
- Package Gross Weight:
- 500.000kg
