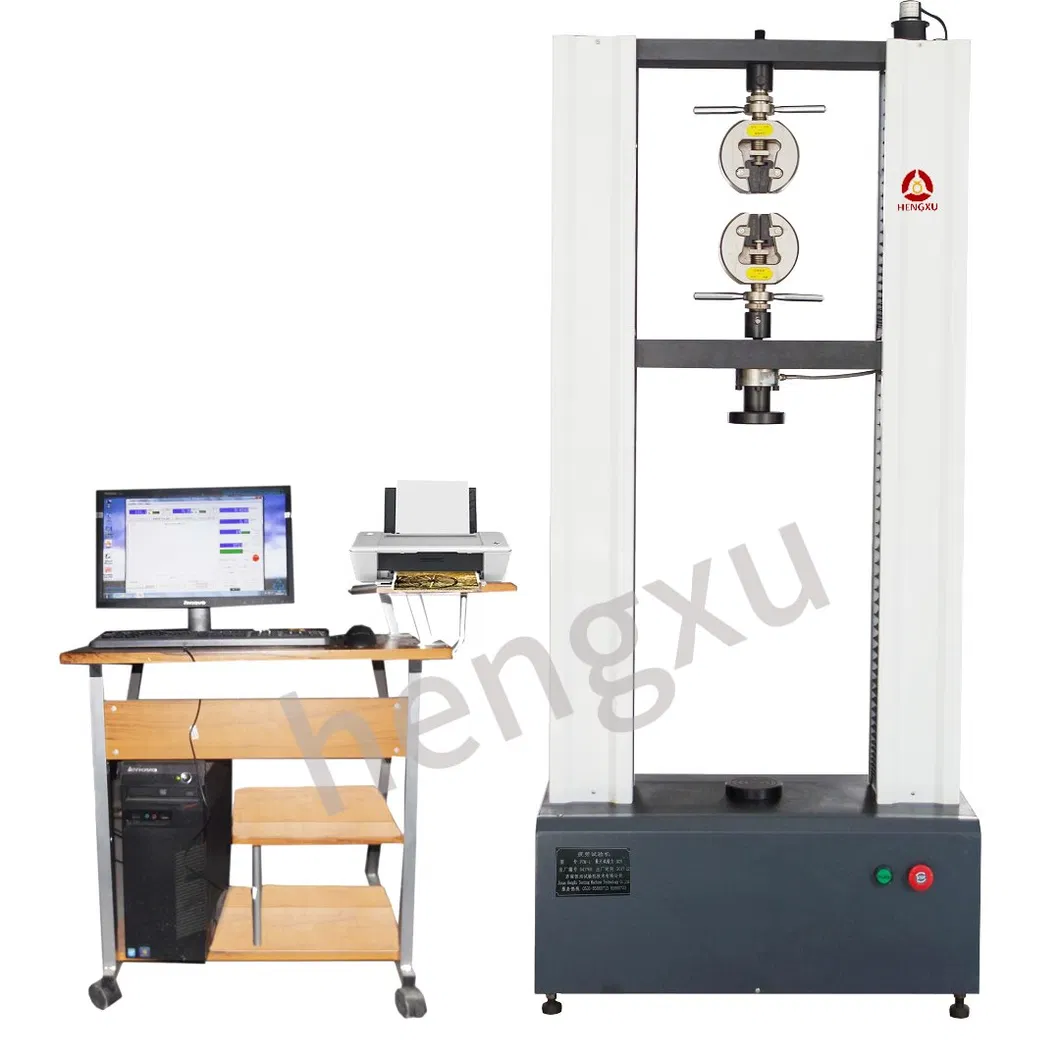

HDW-20 20kN2ton Universal Testing Machine for Accessory Tensile Compression Bending Testing Solutions
Product Description
Main Application
This series of tensile testing machines are meticulously crafted and engineered to meet and exceed ASTM, ISO, DIN, GB, and a multitude of other international standards, ensuring top-tier compliance.Meticulously designed for the evaluation of the mechanical properties of an extensive array of materials-ranging from metals and non-metals to sophisticated composites such as rubber, plastics, textiles, waterproof materials, wires, cables, net ropes, and metal wires-these machines offer outstanding versatility. By simply switching out accessories, users can execute a myriad of tests with precision, including tensile, compression, bending, shearing, tearing, peeling, puncture, and other specialized assessments.

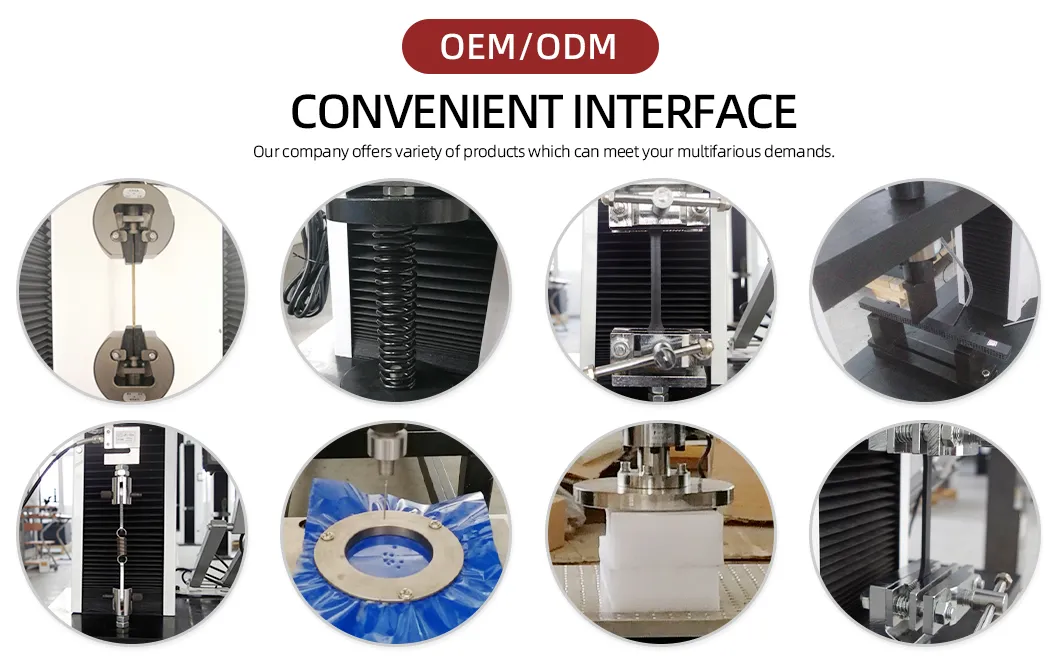

Achieving precision in material testing is fundamental to ensuring both quality and optimal performance. The microcomputer-controlled universal testing machine, with its advanced features, offers precisely that. Engineered with an AC stepper motor and a digital servo speed control system, it guarantees reliable force application during complex mechanical tests. Its arc synchronous belt coupled with a precision ball screw assembly ensures exceptionally smooth operation. While its primary function is tensile testing, the system's versatility allows it to seamlessly adapt to other essential testing methodologies, such as compression, bending, shearing, tearing, peeling, and puncture-merely by altering the fixtures.
| Specification Data | Configurations |
| 1,Max. Load:20KN ; 2, Load Range:2%~100% full Scale or 0.4%-100% Full Scale 3,Load Accuracy;±1% or ±0.5% 4,Resolution of load:1/300000 of full scale 5,Measuring Range Of Deformation:2%~100% 6,Resolution of Displacement:0.001mm 7,Accuracy measure Of Deformation:±1%or±0.5% 8,Control Speed (mm/min):0.1-500(mm/min) 9,Relative Error of Speed:≤±1% 10,Tensile Test Space:650mm 11,Compression Test Space:650mm 12,Load Cell Configuration:One(Max Load), more load cells can be added according to customer requirement. 13,Extend Configuration:Large deformation extensometer, high or low temperature test chamber, high temperature oven. 14,Test machine size:730*360*1750 mm 15,Power Supply:AC110V / 220V / 380V±10%, 50Hz-60Hz 16,Protection function: the test machine has the function of overload and limit protection 17,Weight:260kg |
|

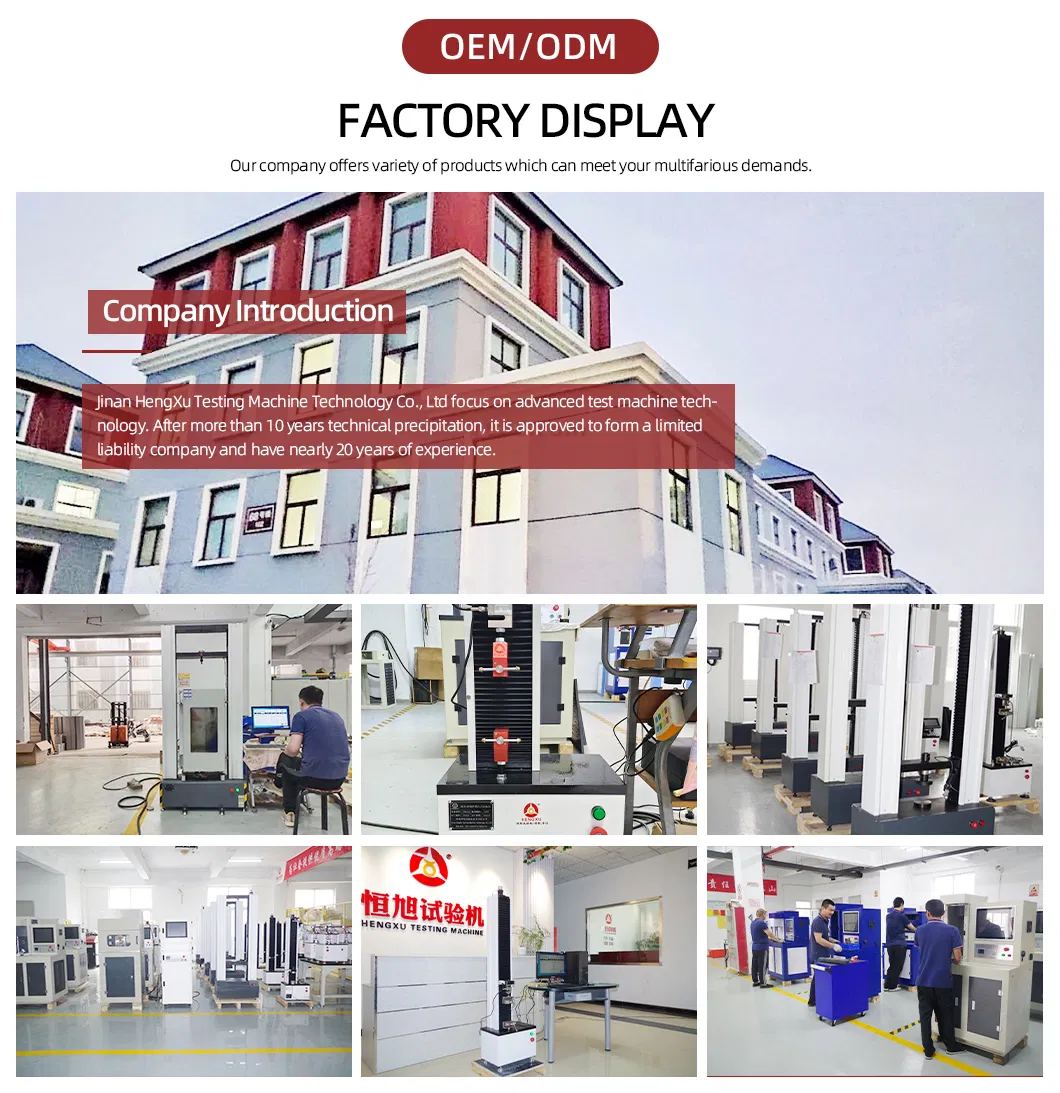

Jinan HengXu Testing Machine Technology Co., Ltd., established in 2007, stands as a beacon of innovation in the high-tech sector, specializing in the pioneering research, cutting-edge development, and efficient production of testing machines. With a dedicated focus on friction wear testing and advanced material mechanical testing, the company has emerged as a dominant force within China's testing industry. HengXu is distinguished by its state-of-the-art testing technologies and unwavering customer loyalty, achieving an impressive milestone of over 100 million RMB in sales in 2023, underscoring its leadership and trust in the marketplace.
- Model NO.:
- HDW-20
- Max Diameter of Workpiece:
- 30mm
- Mass Scope of Workpiece:
- <1kg
- Type:
- Strength Testing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 0.5
- Load Way:
- Electronic Load
- Loading Method:
- Static Load
- Display:
- Export Standard Wooden Crates
- Control:
- Computer Control
- Weight:
- 100-500Kg
- Power Source:
- AC220V
- Oil Cylinder Position:
- No
- Max. Load:
- 20kN
- Load Range:
- 2%~100% Full Scale
- Load Accuracy:
- ±1%
- Resolution of Load:
- 1/300000 of Full Scale
- Measuring Range of Deformation:
- 2%~100%
- Resolution of Displacement:
- 0.001mm
- Accuracy Measure of Deformation:
- ±1%
- Control Speed:
- 0.1-500(mm/Min)
- Relative Error of Speed:
- ≤±1%
- Tensile Test Space:
- 600mm
- Compression Test Space:
- 600mm
- Load Cell Configuration:
- One(Max Load), More Load Cells Can Be Added Accord
- Extend Configuration:
- Large Deformation Extensometer, High or Low Temper
- Protection Function:
- The Test Machine Has The Function of Overload and
- Size:
- 730*360*1750 mm
- Transport Package:
- Export Standard Wooden Crates
- Specification:
- 730*360*1750mm
- Trademark:
- HENGXU
- Origin:
- China
- Production Capacity:
- 1000
- Package Size:
- 730.00cm * 360.00cm * 1750.00cm
- Package Gross Weight:
- 500.000kg
