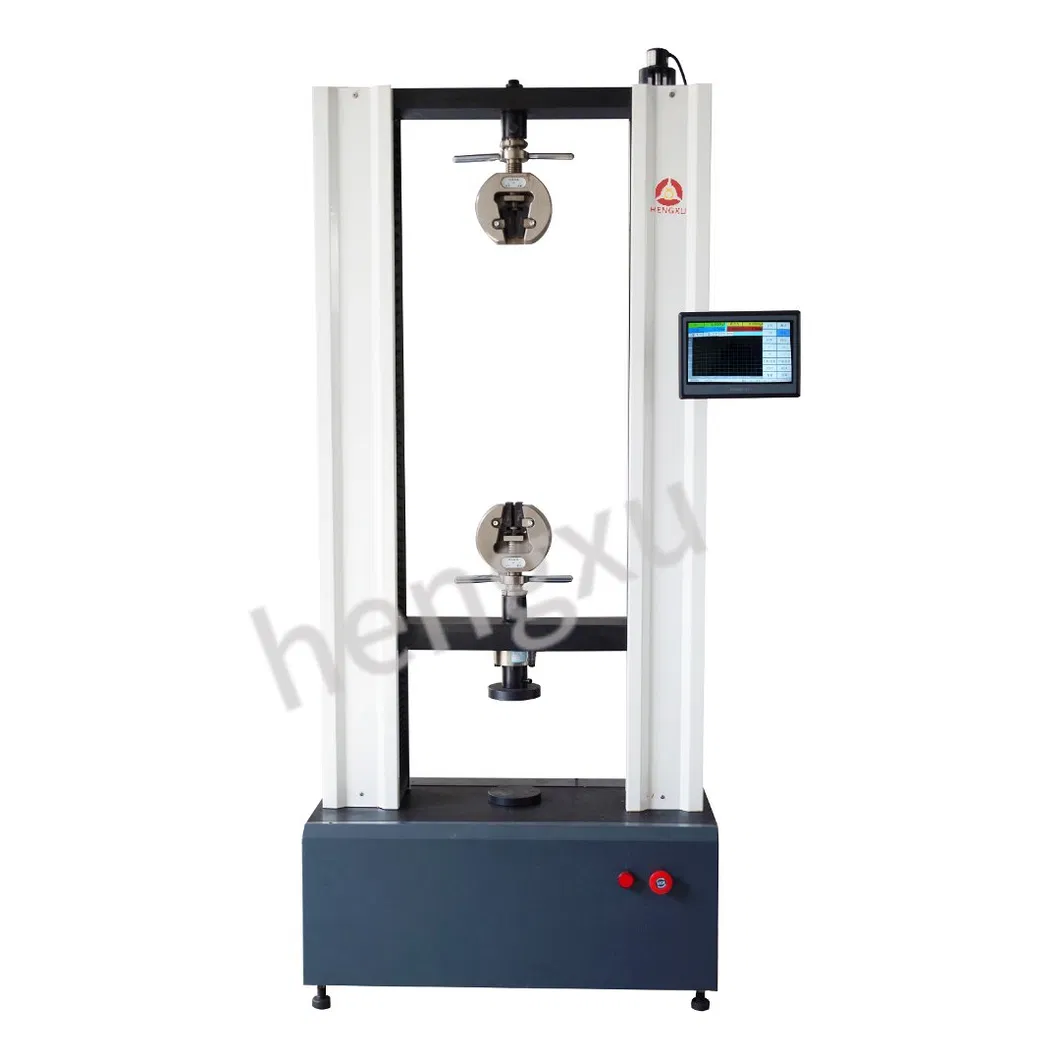

HDS-100 10ton 100kN Load Universal Tension Test Machine for Metal Testing
Product Description
Main Application
The HDS Series tensile testing machines are engineered with precision and versatility, crafted to adhere to the esteemed standards of ASTM, ISO, DIN, GB, and more. They are ideal for evaluating the mechanical properties of a wide array of materials including metals, non-metals, and composites like rubber, plastics, textiles, waterproof materials, wires, cables, net ropes, and metal threads.With effortless adaptability, these machines can conduct a variety of tests. By simply replacing the accessories, users can perform compression, bending, shearing, tearing, peeling, puncture, and many other tests with ease.

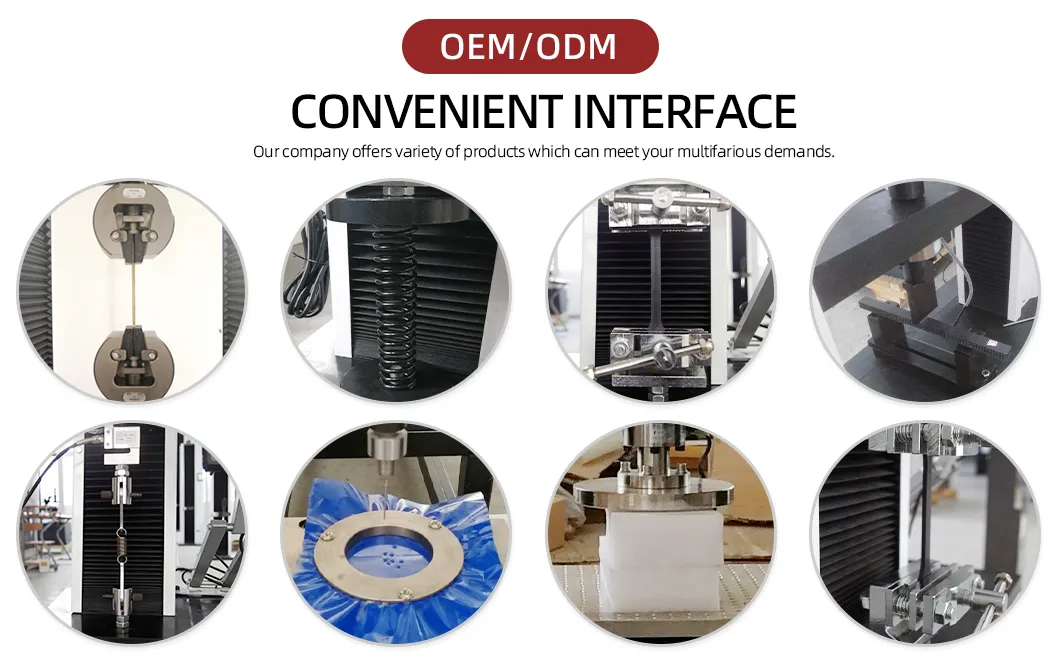

Precision is paramount in material testing, and our microcomputer-controlled universal testing machine is the epitome of accuracy and reliability. Featuring an AC stepper motor paired with a digital servo speed control system, it ensures consistent force application throughout mechanical tests. The arc synchronous belt alongside the precision ball screw assembly guarantees fluid and smooth operations. While predominantly used for tensile testing, the system's versatility shines as it seamlessly transitions to other test formats, such as compression, bending, shearing, tearing, peeling, and puncture, through a simple fixture change.
| The product name | Microcomputer control universal Testing machine specification | |||||
| Model | HDS-5 | HDS-10 | HDS-20 | HDS-50 | HDS-100 | |
| Structure | 2 columns | |||||
| Max. Load(KN) | 5 | 10 | 20 | 50 | 100 | |
| Load Range | 2%~100% full Scale or 0.4%-100% Full Scale | |||||
| Load Accuracy | ±1% or ±0.5% | |||||
| Resolution of load | 1/300000 of full scale | |||||
| Measuring Range Of Deformation | 2%~100% | |||||
| Resolution of Displacement | 0.001mm | |||||
| Accuracy measure Of Deformation | ±%or±0.5% | |||||
| Control Speed | 0.1-500(mm/min) | |||||
| Relative Error of Speed: | ≤±1% | |||||
| Tensile Test Space | 650mm | |||||
| Compression Test Space | 650mm | |||||
| Load Cell Configuration | One(Max Load), more load cells can be added according to customer requirement. | |||||
| Extend Configuration | Large deformation extensometer, high or low temperature test chamber, high temperature oven. | |||||
| Protection function | The test machine has the function of overload and limit protection | |||||
| Test machine size(mm) | 730*360*1750 | 740*500*1820 | 800*480*1870 | |||
| Power Supply | AC110V / 220V / 380V±10%, 50Hz-60Hz | |||||
| Weight(KG) | 300 | 400 | 500 | |||

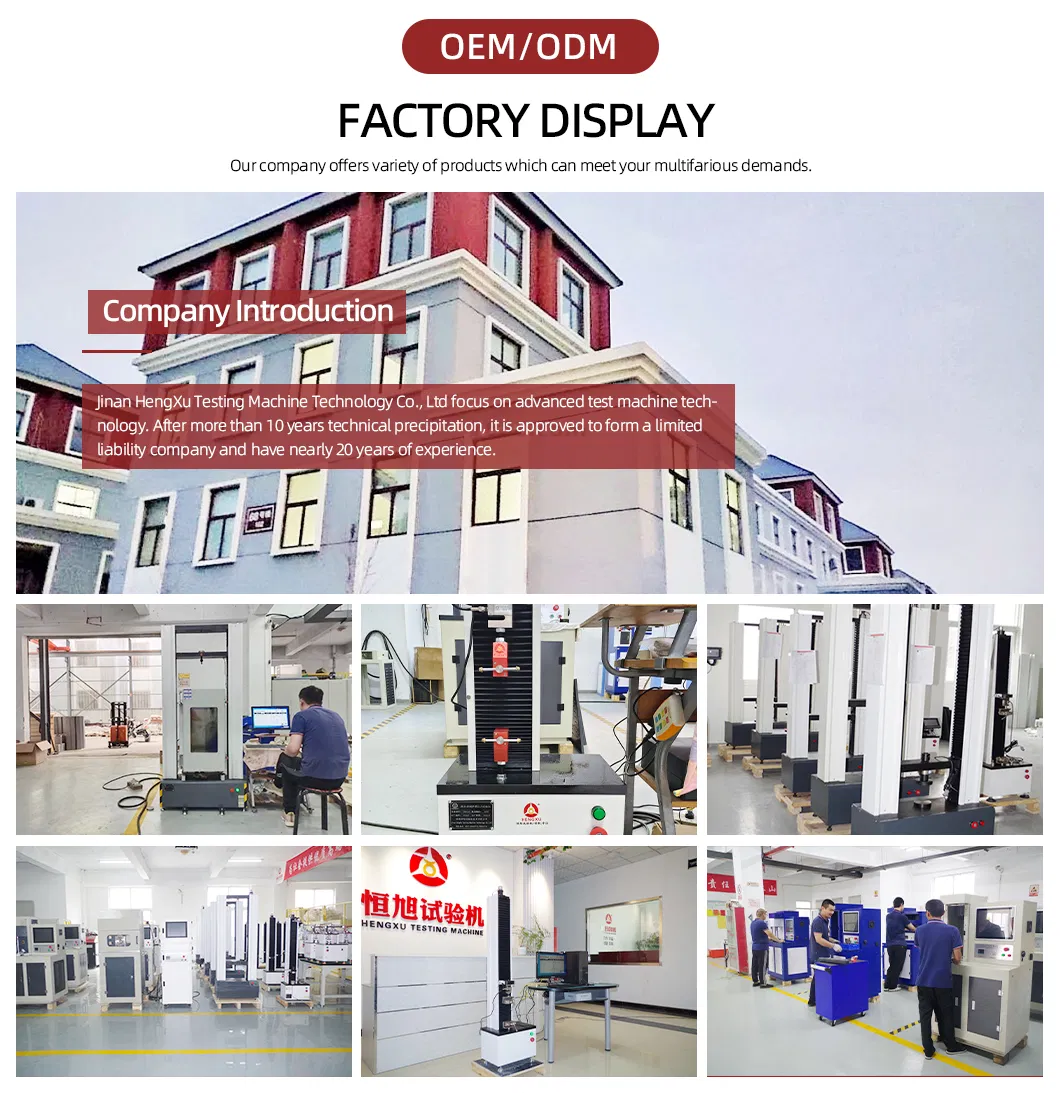

Founded in 2007, Jinan HengXu Testing Machine Technology Co., Ltd. is a distinguished high-tech enterprise dedicated to the pioneering research, exceptional development, and meticulous production of cutting-edge testing machines. Specializing in friction wear testing and mechanical testing for advanced materials, HengXu has proudly established itself as a leader in China's testing industry. Boasting innovative testing technologies and unwavering customer loyalty, HengXu achieved a remarkable milestone with sales surpassing 100 million RMB in 2023.
- Model NO.:
- HDS-100
- Max Diameter of Workpiece:
- 30mm
- Mass Scope of Workpiece:
- <1kg
- Type:
- Strength Testing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 0.5
- Load Way:
- Electronic Load
- Loading Method:
- Static Load
- Display:
- Export Standard Wooden Crates
- Control:
- Computer Control
- Weight:
- 100-500Kg
- Power Source:
- AC220V
- Oil Cylinder Position:
- No
- Max. Load:
- 100kN
- Load Range:
- 2%~100% Full Scale
- Load Accuracy:
- ±1%
- Resolution of Load:
- 1/300000 of Full Scale
- Measuring Range of Deformation:
- 2%~100%
- Resolution of Displacement:
- 0.001mm
- Accuracy Measure of Deformation:
- ±1%
- Control Speed:
- 0.1-500(mm/Min)
- Relative Error of Speed:
- ≤±1%
- Tensile Test Space:
- 600mm
- Compression Test Space:
- 600mm
- Load Cell Configuration:
- One(Max Load), More Load Cells Can Be Added Accord
- Extend Configuration:
- Large Deformation Extensometer, High or Low Temper
- Protection Function:
- The Test Machine Has The Function of Overload and
- Size:
- 730*360*1750 mm
- Transport Package:
- Export Standard Wooden Crates
- Specification:
- 730*360*1750mm
- Trademark:
- HENGXU
- Origin:
- China
- Production Capacity:
- 1000
- Package Size:
- 730.00cm * 360.00cm * 1750.00cm
- Package Gross Weight:
- 500.000kg
