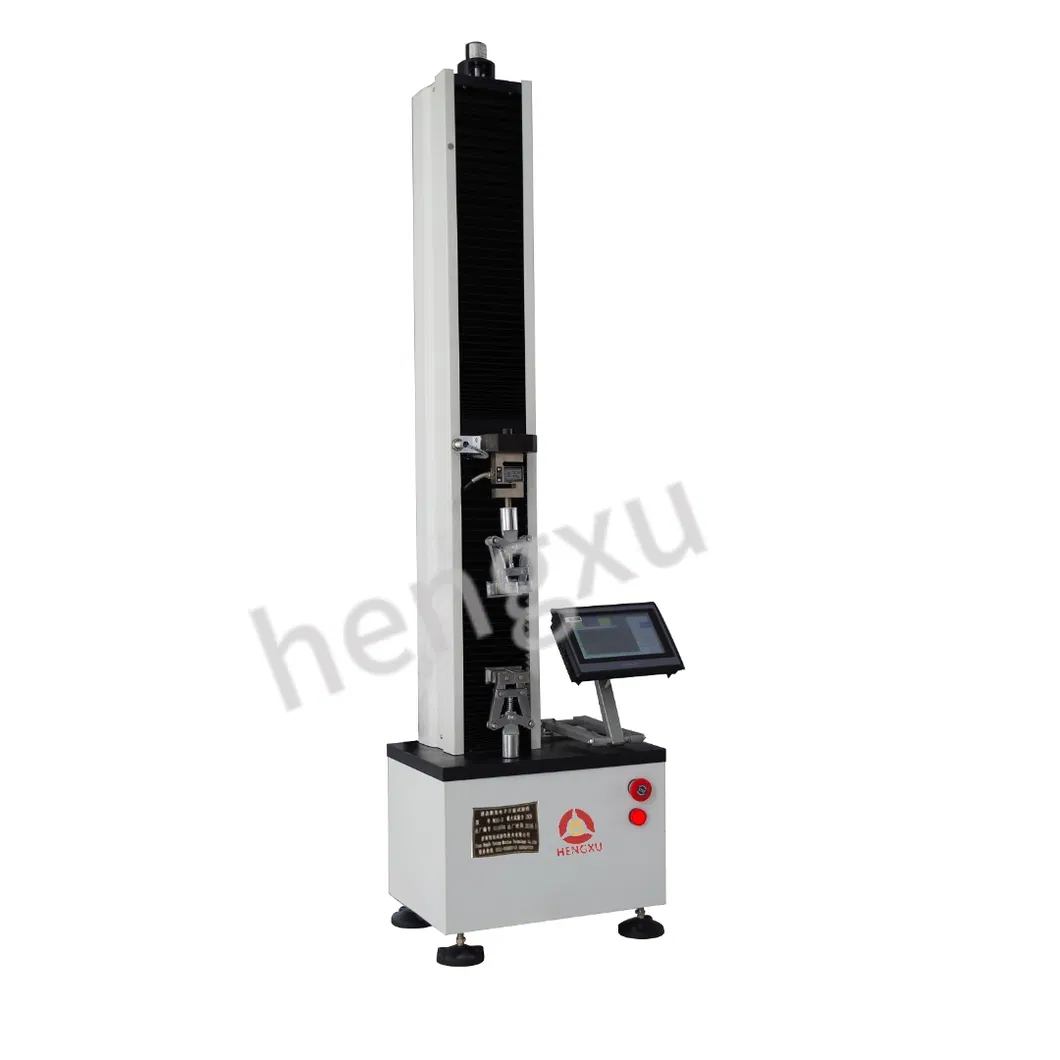

Hds-1 1000n100kg High-Precision Universal Tensile Testing Machine with Enhanced Safety Features
Product Description
Main Application

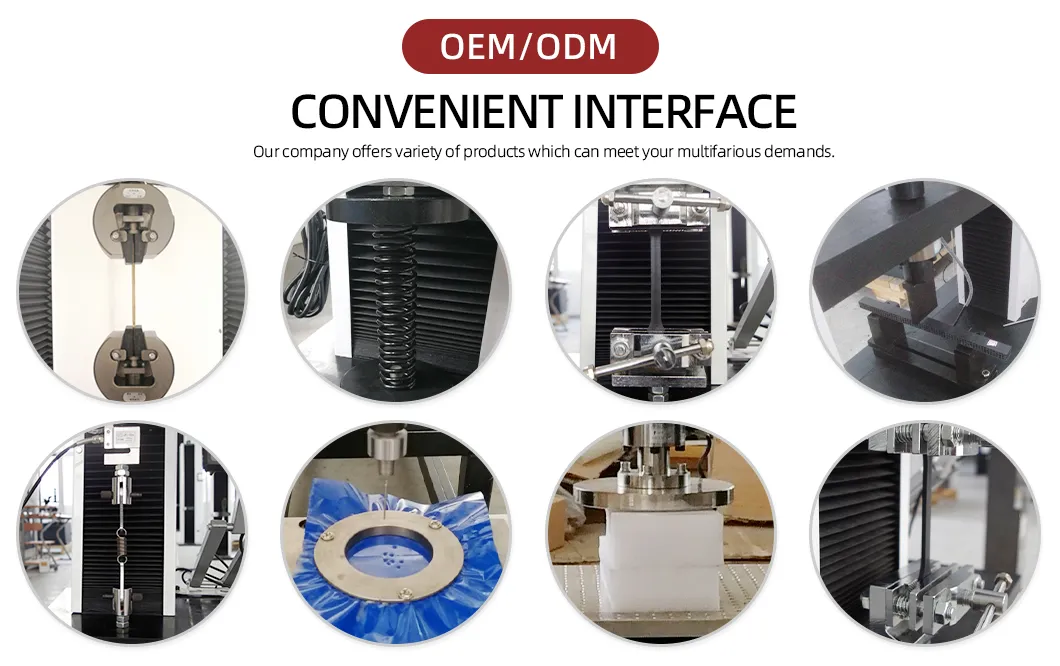

This series of tensile testing machines are meticulously crafted and designed in alignment with renowned standards including ASTM, ISO, DIN, GB, and others. They are adeptly suitedfor evaluating the mechanical characteristics of a wide array of materials, whether metals, non-metals, or composites. From rubber to textiles and wires to cables, these machines excel. Simply switch out the accessories to smoothly conduct tests such as compression, bending, shearing, tearing, peeling, puncturing, among others, with unparalleled ease.
Specification Data | Configurations |
1、Max. Load：1000N ； 2、 Load Range:2%~100% full Scale or 0.4%-100% Full Scale 3、Load Accuracy；±1% or ±0.5% 4、Resolution of load：1/300000 of full scale 5、Measuring Range Of Deformation：2%~100% 6、Resolution of Displacement：0.001mm 7、Accuracy measure Of Deformation：±1%or±0.5% 8、Control Speed (mm/min)：0.1-500(mm/min) 9、Relative Error of Speed：≤±1% 10、Tensile Test Space：650mm或1000mm 11、Compression Test Space：650mm或1000mm 12、Load Cell Configuration：One(Max Load), more load cells can be added according to customer requirement. 13、Extend Configuration：Large deformation extensometer, high or low temperature test chamber, high temperature oven. 14、Test machine size：480*280*1480 or 1750 mm 15、Power Supply：AC110V / 220V / 380V±10%, 50Hz-60Hz 16、Protection function: the test machine has the function of overload and limit protection 17、Weight：150kg | 1. High strength main unit:1 set 2. High precision photoelectric encoder:1 set 3. High precision arc synchronous deceleration system:1 suit 4. High precision ball screw:1 pcs 5. AC Servo motor and Control system(Panasonic Motor Optional):1 suit 6. High Precision Load Sensor:1 pc 7. Tensile fixture:1 suit 8. Compression fixture:1 suit 9. Bending fixture(Optional):1 suit 10. Small deformation extensometer(Optional):1 suit Specification: Optional 11. Touch screen controller:1 set 12. Optional connection computer 13. Microprinter:1set
|

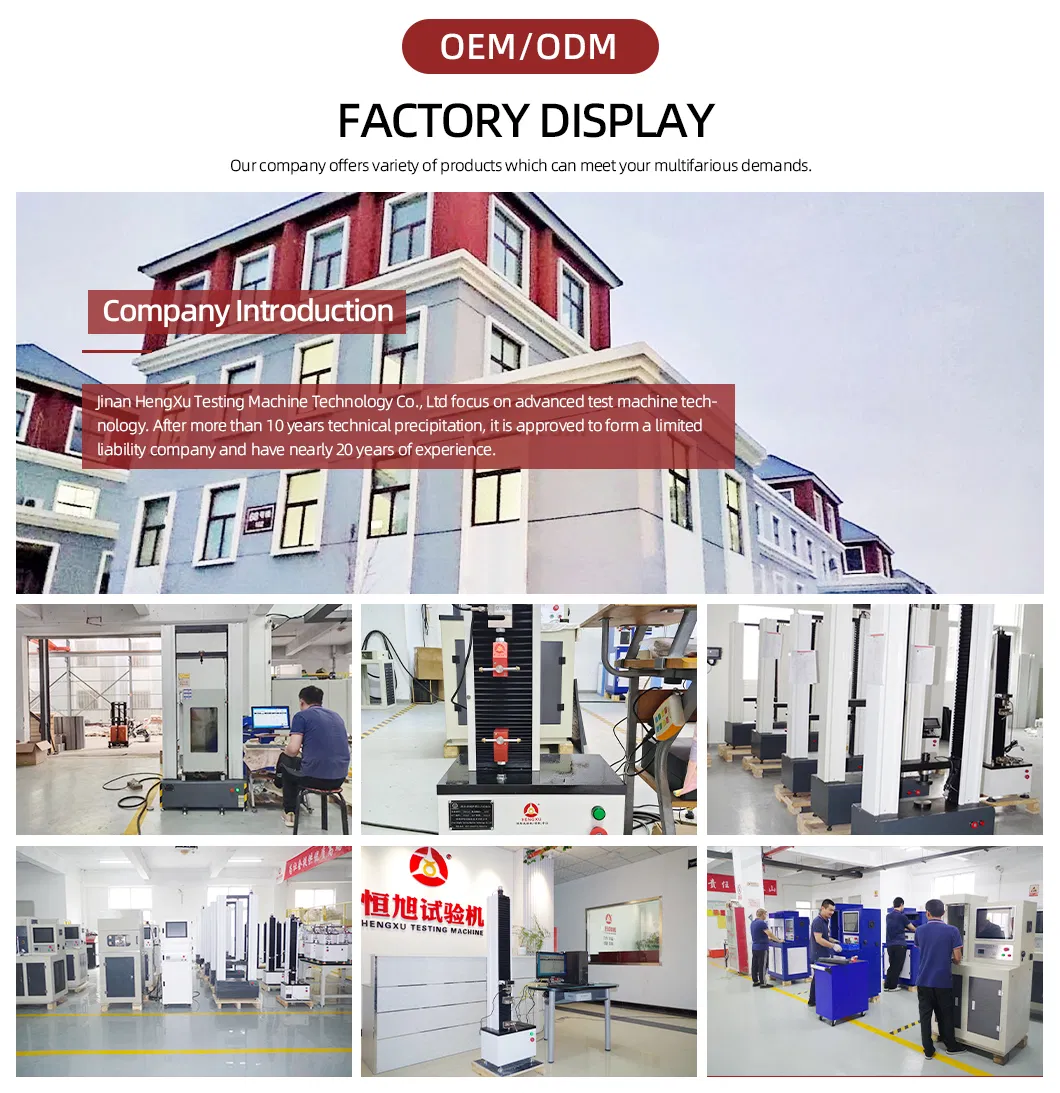

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.
Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!
- Model NO.:
- HDS-5
- Max Diameter of Workpiece:
- <30mm
- Mass Scope of Workpiece:
- <1kg
- Type:
- Tensile Testing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 0.5
- Load Way:
- Electronic Load
- Loading Method:
- Static Load
- Display:
- Computer
- Control:
- Computer Control
- Weight:
- 100-500Kg
- Power Source:
- AC220V
- Oil Cylinder Position:
- No
- Protection Function:
- The Testing Machine Has Overload Protection Functi
- Test Force Accuracy:
- Better Than ±1%
- Displacement Resolution:
- 0.001mm
- Displacement Measurement Accuracy:
- Better Than ±1%
- Test Stroke:
- 650mm
- Displacement Speed Control Range:
- 0.01mm/Min~300mm/Min (Normal Configuration)
- Displacement Speed Control Accuracy:
- Better Than 1%
- Appearance:
- Meets GB/T2611 Requirements
- Complete Set:
- Meets Standard Requirements
- Transport Package:
- Meet Export Requirements Wooden Box
- Specification:
- 480× 280× 1480
- Trademark:
- HENGXU
- Origin:
- China
- HS Code:
- 9024800000
- Production Capacity:
- 1000
- Package Size:
- 730.00cm * 360.00cm * 1750.00cm
- Package Gross Weight:
- 170.000kg
