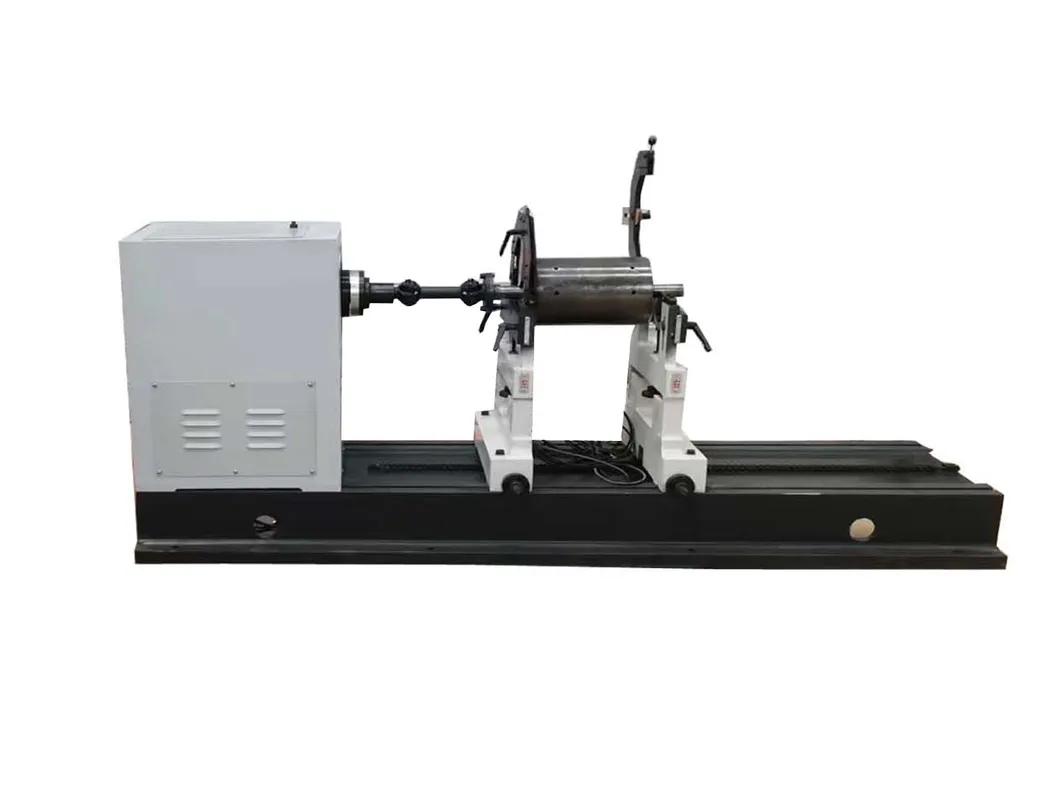

Advanced Hengxu YYW-300A Dynamic Balancing Equipment for Precision Centrifugal Fan
Product Description
Our dynamic balancing equipment is a cornerstone in sectors like electric motors, blowers, diesel engines, agricultural and textile machinery. It excels in balancing a diverse range of components from single to multiple correction surfaces, perfectly accommodating shafts, disks, and extended center-of-gravity rotors. Standout features include exceptional efficiency, unparalleled precision, intuitive display systems, reliable quality, and effortless maintenance.
Applications
Widely used in industries such as electric motors, blowers, diesel engines, agricultural machinery, and textile machinery.
Optional Features
- Automatic tracking of balance angles for improved precision during operation
- Automatic positioning of the rotor upon stopping, ensuring accurate placement for further analysis
- Vector angle decomposition functionality for a detailed assessment of imbalance
- Customizable bed length to accommodate larger workpieces as required by the user
- Adjustable support shaft diameter to suit different workpiece sizes, ensuring flexibility for various applications
Main Technical Parameters
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Distance between two supports (mm) | Shaft diameter range (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) | Speed control method |
| YYW-160A |
5-160 | Ø950 | 60-1420 | Ø10-180 | 300-1500 stepless speed control | ≤1 | ≥90 | 1.5 | Variable frequency motor |
| YYW-300A |
10-300 | Ø1200 | 60-1700 | Ø20-180 | 300-1500 stepless speed control | ≤1 | ≥90 | 5.5 | Variable frequency speed control |
| YYW-500A |
20-500 | Ø1500 | 70-1600 | Ø15-240 | 300-1500 stepless speed control | ≤1 | ≥90 | 7.5 | Variable frequency motor |
| YYW-1000A |
20-1000 | Ø1500 | 70-2300 | Ø15-240 | 300-1500 stepless speed control | ≤1 | ≥90 | 7.5 | Variable frequency motor |
| YYW-1600A |
30-1600 | Ø1800 | 100-2500 | Ø15-240 | 300-1500 stepless speed control | ≤1 | ≥90 | 11 | Variable frequency speed control |
| YYW-3000S | 50-3000 | Ø2000 | 300-3000 | Ø40-300 | 110-1170 stepless speed control | ≤1 | ≥90 | 7.5 | Variable frequency speed control |
| YYW-3000A | 100-3000 | Ø2400 | 300-3000 | Ø40-300 | 110-1170 stepless speed control | ≤1 | ≥90 | 11 | Variable frequency speed control |
| YYW-5000A |
300-5000 | Ø2400/2900 | 340-2960 | Ø40-180, 180-300 | 110-1170 stepless speed control | ≤1 | ≥90 | 18.5 | Variable frequency speed control |
| YYW-10000A | 300-10000 | Ø2400/3200 | 240-5100 | Ø50-200, 200-400 | 110-1140 stepless speed control | ≤1 | ≥90 | 45 | Variable frequency speed control |
| YYW-20000A | 500-20000 | Ø2400/3200 | 300-5100 | Ø50-200, 200-400 | 110-1140 stepless speed control | ≤1 | ≥90 | 55 | Variable frequency speed control |
1. Measurement System
Harnessing the power of an industrial control computer paired with a 19-inch LCD display, our system runs on a Windows operating platform, ensuring a seamless user experience.
Our vertical balancing machines are equipped with a proprietary universal balancing measurement system, developed in-house. This comprehensive software encompasses all the functionalities of leading balancing machine software within China. The operation is guided by a Chinese menu structure, with text prompts for operational steps. Larger vertical machines are enhanced with a software feature for angle tracking, further optimizing user efficiency.
Experience the unmatched prowess of our measurement system: capable of calibrating any workpiece, it boasts a broad measurement speed range starting at a mere 80 rpm. Enjoy swift measurement speeds with stable unbalance amplitude and phase, a high weight removal rate, and outstanding sensitivity.
Our software includes an intuitive allowable unbalance calculator. By simply entering the vibration accuracy level, mass, operational speed, and radius of the workpiece, the operator can effortlessly calculate the permissible residual unbalance in grams.
Completely custom-developed, our software is adaptable and can be modified or enhanced to meet specific customer requirements, ensuring bespoke solutions for unique needs.

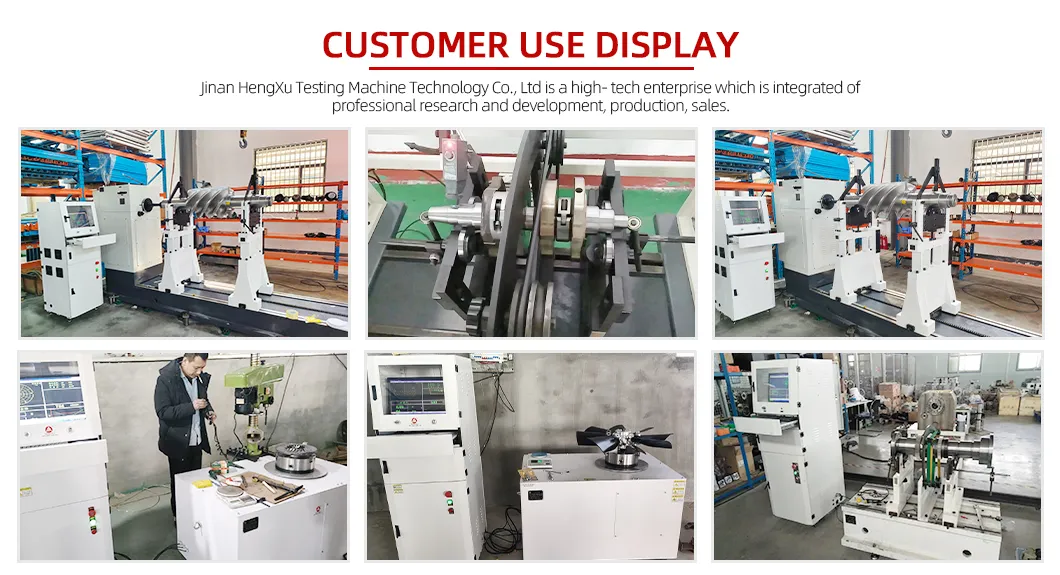

2. Mechanical Part and Control
Crafted with a casting base, vertical bracket, spindle seat, and support seat, our equipment guarantees superior rigidity and stability. With the same model boasting a 20% overload capacity, it is robust and reliable.
Our spindle, forged from 45# carbon structural steel and meticulously quenched and ground, achieves axial and radial runout within a precise 0.01mm. Designed to withstand workpiece imbalances exceeding 30000g*cm, the equipment delivers exceptional measurement accuracy.
Equipped with a multi-V belt, the power transmission system ensures smooth, reliable operation with minimal impact on balance measurements.
For effortless identification of the unbalance angle, the spindle features a synchronous rotating dial.
The hollow-structured spindle can connect to a rotating cylinder, enabling swift workpiece clamping via a pull rod and pneumatic chuck (or pneumatic tooling), enhancing operational efficiency.
Built to last, our equipment employs a variable frequency speed regulation system. Its soft start and stop functionality reduces motor impact, prolonging equipment longevity. Designed for continuous operation, it offers uncomplicated and convenient maintenance.

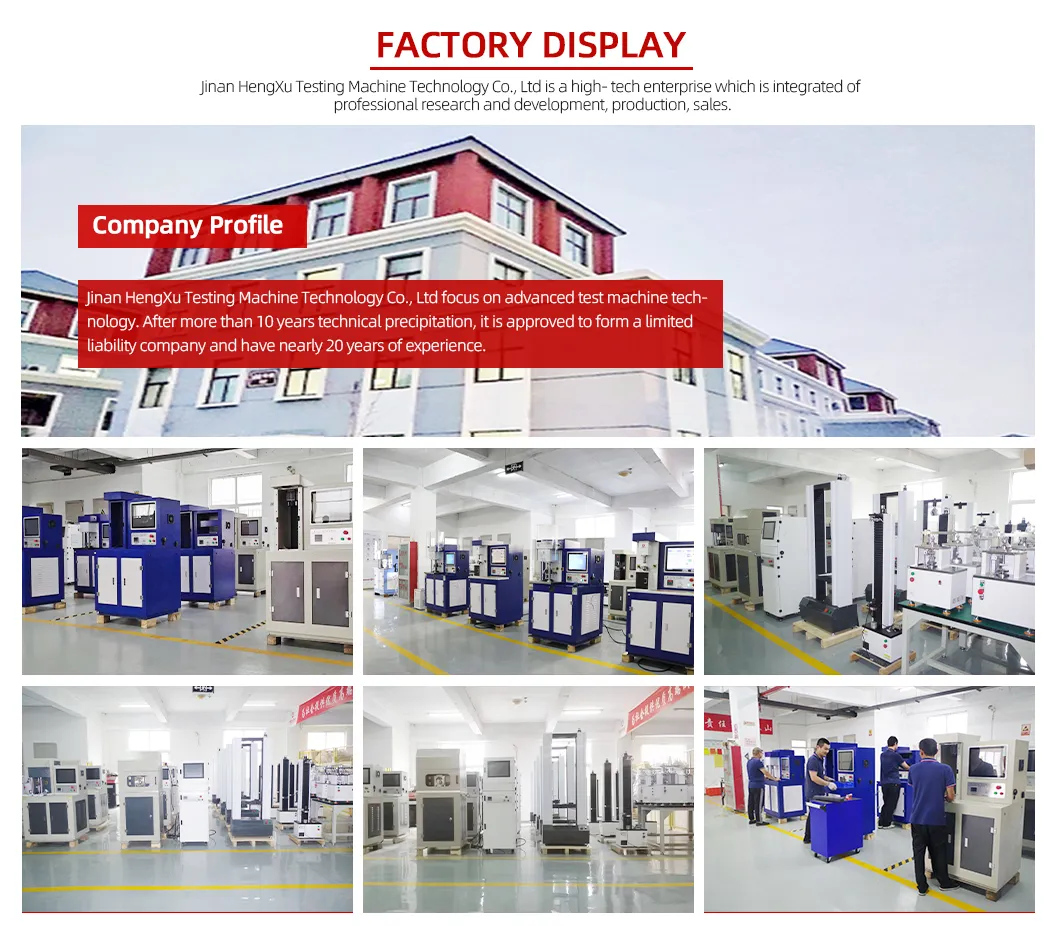

Jinan HengXu Testing Machine Technology Co., Ltd., founded in 2007, is a distinguished high-tech enterprise that's at the forefront of the testing machine industry. Specializing in the research, development, and manufacturing of cutting-edge testing machines, our expertise spans friction wear testing and mechanical testing for advanced materials. HengXu has solidified its position as a vanguard in China's testing sector, distinguished by its innovative testing technologies and the unwavering trust of its clientele. This trust and innovation culminated in an impressive sales figure exceeding 100 million RMB last year, highlighting our dominance and commitment to excellence.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.
Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!
- Model NO.:
- YYW-300A
- Max Diameter of Workpiece:
- 2400mm
- Mass Scope of Workpiece:
- 10000kg
- Type:
- Balancing Machine
- Maxcapacity:
- <1000KN
- Accuracy Grade:
- 1
- Load Way:
- Electronic Load
- Loading Method:
- Dynamic Load
- Display:
- Digital
- Control:
- Computer Control
- Weight:
- >2000Kg
- Power Source:
- AC380V
- Oil Cylinder Position:
- No
- Transport Package:
- Wooden Boxes That Meet Export Requirements
- Specification:
- 630*670*1600, 1100*800*740
- Trademark:
- HENGXU
- Origin:
- China
- HS Code:
- 9031100090
- Package Size:
- 200.00cm * 50.00cm * 1000.00cm
- Package Gross Weight:
- 1000.000kg
